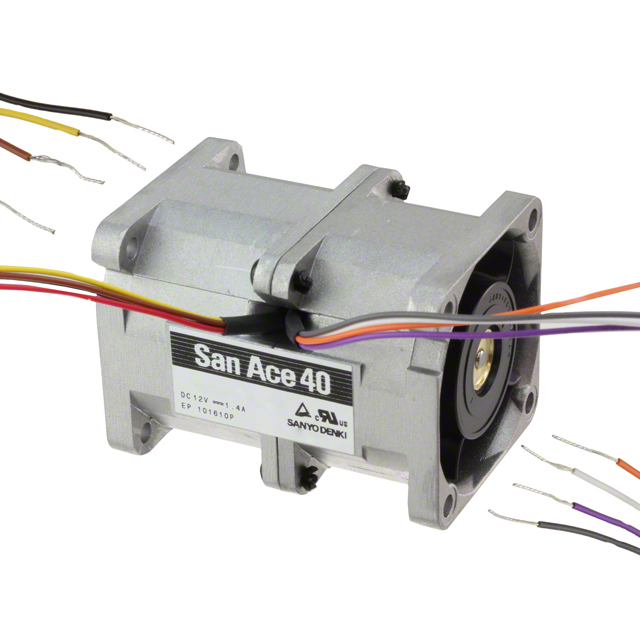

9CRE0412P5J03
ActiveSanyo Denki America Inc.
FAN AXIAL DUAL 40X56MM 12VDC
Deep-Dive with AI
Search across all available documentation for this part.
9CRE0412P5J03
ActiveSanyo Denki America Inc.
FAN AXIAL DUAL 40X56MM 12VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9CRE0412P5J03 |
|---|---|
| Air Flow | 31.8 CFM |
| Air Flow | 0.89 m³/min |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.4 A |
| Fan Type | Tubeaxial (Dual) |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 62 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 16.8 W |
| RPM [custom] | 15800 RPM |
| RPM [custom] | 12200 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Termination | 4 Wire Leads per Fan |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 10.8 VDC |
| Weight | 0.243 lb |
| Weight | 110.22 g |
| Width [x] | 56 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 39.78 | |
| 10 | $ 36.33 | |||
| 25 | $ 34.95 | |||
| 98 | $ 32.65 | |||
| 196 | $ 30.12 | |||
| 294 | $ 29.66 | |||
Description
General part information
9CRE0412 Series
Fan Tubeaxial (Dual) 12VDC Square - 40mm L x 40mm H Ball 31.8 CFM (0.890m³/min) 4 Wire Leads per Fan
