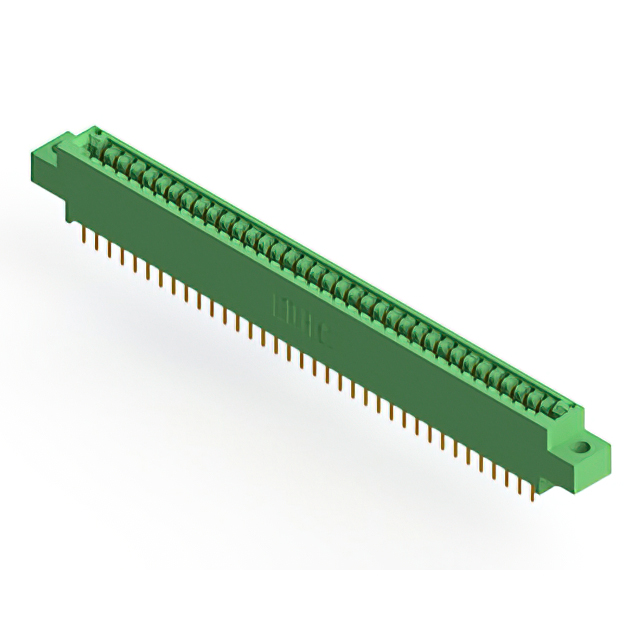

846-072-521-804
ActiveEDAC Inc.
3.18MM STRAIGHT 72P -40℃~+125℃ PLUGIN,P=3.18MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-072-521-804
ActiveEDAC Inc.
3.18MM STRAIGHT 72P -40℃~+125℃ PLUGIN,P=3.18MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-072-521-804 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
846-072 Series
...
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Features | Contact Material | Contact Finish | Termination | Mounting Type | Read Out | Contact Type | Number of Positions/Bay/Row [custom] | Number of Positions | Pitch [x] | Pitch [x] | Color | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Number of Rows | Material - Insulation | Card Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2 | Card Extender | Copper Alloy | Gold | Solder | Board Edge Straddle Mount | Dual | Cantilever | 36 | 72 | 0.125 in | 3.18 mm | Green | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | ||
EDAC Inc. | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 2 | Copper Alloy | Gold | Solder | Through Hole | Dual | Cantilever | 36 | 72 | 0.125 in | 3.18 mm | Green | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | |||
EDAC Inc. | Side Mount Opening Unthreaded | 2 | Copper Alloy | Gold | Wire Wrap | Through Hole | Dual | Cantilever | 36 | 72 | 0.125 in | 3.18 mm | Green | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 2 | Copper Alloy | Gold | Solder | Through Hole Right Angle | Dual | Cantilever | 36 | 72 | 0.125 in | 3.18 mm | Green | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | |||
EDAC Inc. | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 2 | Copper Alloy | Gold | Solder | Through Hole Right Angle | Dual | Cantilever | 36 | 72 | 0.125 in | 3.18 mm | Green | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | |||
EDAC Inc. | 2 | Copper Alloy | Gold | Solder | Through Hole | Dual | Cantilever | 36 | 72 | 0.125 in | 3.18 mm | Green | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 2 | Copper Alloy | Gold | Solder | Through Hole Right Angle | Dual | Cantilever | 36 | 72 | 0.125 in | 3.18 mm | Green | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | ||||||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | 2 | Card Extender | Copper Alloy | Gold | Solder Eyelet(s) | Board Edge Straddle Mount | Dual | Cantilever | 36 | 72 | 0.125 in | 3.18 mm | Green | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | ||||
EDAC Inc. | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 2 | Card Extender | Copper Alloy | Gold | Solder Eyelet(s) | Board Edge Straddle Mount | Dual | Cantilever | 36 | 72 | 0.125 in | 3.18 mm | Green | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | ||
EDAC Inc. | 2 | Copper Alloy | Gold | Solder | Through Hole | Dual | Cantilever | 36 | 72 | 0.125 in | 3.18 mm | Green | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-072 Series
72 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
