680S9W4103L401 - 680S9W4103L401

680S9W4103L401

Active
MH Connectors

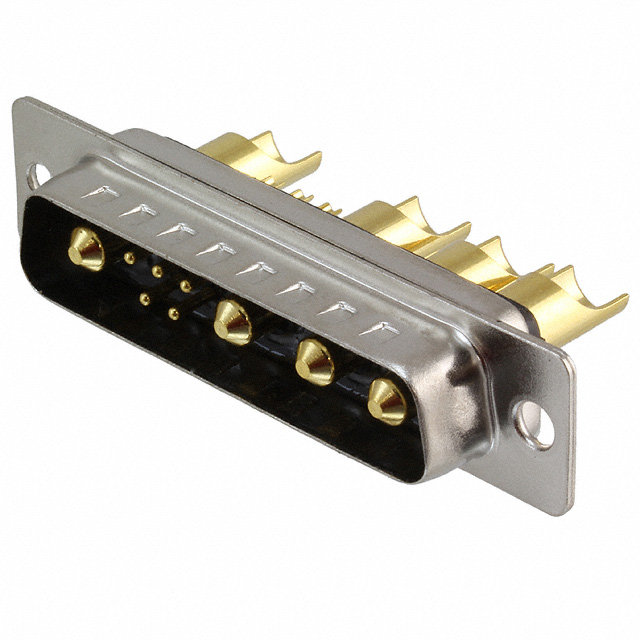

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 680S SERIES, DB-9W4, PLUG, 9 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetWhite Papers EN+3
680S9W4103L401 - 680S9W4103L401

680S9W4103L401

Active
MH Connectors

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 680S SERIES, DB-9W4, PLUG, 9 CONTACTS

Deep-Dive with AI

DocumentsDatasheetWhite Papers EN+3

Technical Specifications

Parameters and characteristics for this part

Specification680S9W4103L401
ColorBlack
Connector StyleD-Sub, Combo
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialCopper Alloy
Contact TypeSignal and Power
Current Rating (Amps)40 A, 5 A
Dielectric MaterialPolybutylene Terephthalate (PBT)
FeaturesGrounding Indents
Flange FeatureHousing/Shell (Unthreaded)
Ingress ProtectionIP67 - Dust Tight, Waterproof
Material Flammability RatingUL94 V-0
Number of Positions9
Number of Positions [custom]4
Number of Positions [custom]5
Number of Rows2
Operating Temperature [Max]155 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout3 (DB, B) - 9W4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 23.58
10$ 18.17
25$ 16.45
40$ 15.65
80$ 14.56
230$ 13.10
440$ 12.31
NewarkEach 10$ 19.02
100$ 14.73
500$ 13.33
1000$ 12.68

Description

General part information

680S9W4 Series

9 (5 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
