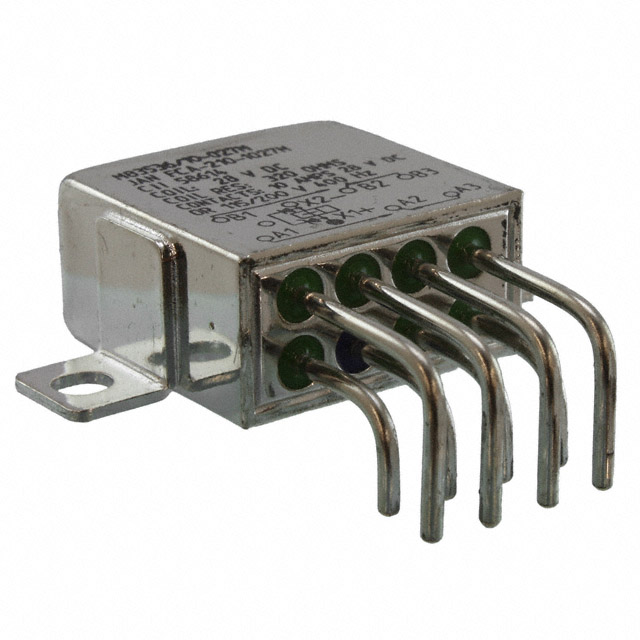

FCA-210-1027M
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE DPDT 10A 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FCA-210-1027M
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE DPDT 10A 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FCA-210-1027M |
|---|---|
| Coil Current | 87.5 mA |
| Coil Resistance | 320 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 28 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 10 A |
| Grade | Military |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.5 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -70 °C |
| Qualification | MIL-R-83536/10 |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage | 28 VDC, 115 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 256.26 | |
| 10 | $ 239.18 | |||
| 25 | $ 230.64 | |||
Description
General part information
1617749 Series
General Purpose Relay DPDT (2 Form C) 28VDC Coil Chassis Mount
