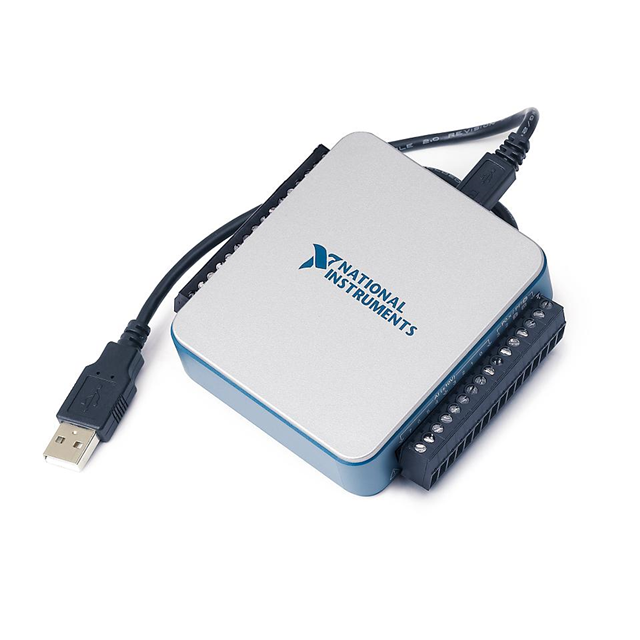

782608-01

Active

DAQ DEVICE MULTIFUNC I/O USB 2.0

Search across all available documentation for this part.

Active

DAQ DEVICE MULTIFUNC I/O USB 2.0

Technical Specifications

Parameters and characteristics for this part

Specification	782608-01

Bidirectional Channels [custom]	13
Bus Connection	USB 2.0
Counter/Timers	1
Front Connection	Screw Terminal
Function	Multifunction I/O
Input Range	10 V
Input Resolution	16 Bits
Number of Inputs and Type [custom]	4
Number of Inputs and Type [custom]	13
Number of Inputs and Type [custom]	8
Number of Outputs and Type [custom]	2
Number of Outputs and Type [custom]	13
Output Range [Max]	10 V
Output Range [Min]	-10 V
Sampling Rate (Per Second)	100k
Type	DAQ Device

Part	Function	Sampling Rate (Per Second)	Front Connection	Input Range	Input Resolution	Output Range [Min]	Output Range [Max]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Counter/Timers	Bus Connection	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Bidirectional Channels [custom]	Type
NI 782608-01	Multifunction I/O	100k	Screw Terminal	10 V	16 Bits	-10 V	10 V	4	13	8	1	USB 2.0	2	13	13	DAQ Device

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 922.50

General part information

Multifunction I/O DAQ Device USB 2.0 Screw Terminal
