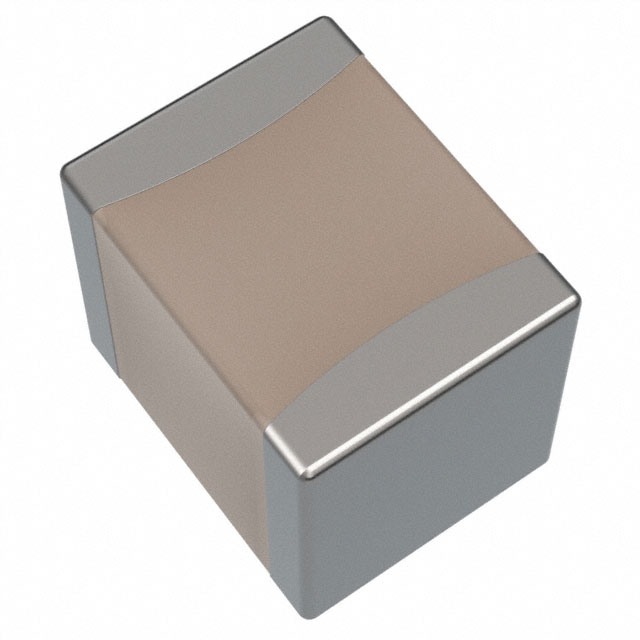

UMF325B7475MMHP

Active

TAIYO YUDEN

SMD MULTILAYER CERAMIC CAPACITOR, 4.7 ΜF, 50 V, 1210 [3225 METRIC], ± 20%, X7R, M SERIES

Search across all available documentation for this part.

Active

TAIYO YUDEN

SMD MULTILAYER CERAMIC CAPACITOR, 4.7 ΜF, 50 V, 1210 [3225 METRIC], ± 20%, X7R, M SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Package / Case	Temperature Coefficient	Applications	Voltage - Rated	Tolerance	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
TAIYO YUDEN UMF325B7474KNHT	AEC-Q200	-55 °C	125 °C	MLCC Surface Mount	0.083 in	2.1 mm	1210	3225 Metric	X7R	Automotive SMPS Filtering	50 VDC	10 %	0.47 µF	3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMF325B7474MNHT	AEC-Q200	-55 °C	125 °C	MLCC Surface Mount	0.083 in	2.1 mm	1210	3225 Metric	X7R	Automotive SMPS Filtering	50 VDC	20 %	0.47 µF	3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMF325B7225MMHP	AEC-Q200	-55 °C	125 °C	MLCC Surface Mount	0.106 "	2.7 mm	1210	3225 Metric	X7R	Automotive SMPS Filtering	50 VDC	20 %	2.2 µF	3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMF325B7473KNHT	AEC-Q200	-55 °C	125 °C	MLCC Surface Mount	0.083 in	2.1 mm	1210	3225 Metric	X7R	Automotive SMPS Filtering	50 VDC	10 %		3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMF325B7475MMHP	AEC-Q200	-55 °C	125 °C	MLCC Surface Mount	0.106 "	2.7 mm	1210	3225 Metric	X7R	Automotive SMPS Filtering	50 VDC	20 %	4.7 µF	3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMF325B7224KNHT	AEC-Q200	-55 °C	125 °C	MLCC Surface Mount	0.083 in	2.1 mm	1210	3225 Metric	X7R	Automotive SMPS Filtering	50 VDC	10 %	0.22 µF	3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMF325B7223KNHT	AEC-Q200	-55 °C	125 °C	MLCC Surface Mount	0.083 in	2.1 mm	1210	3225 Metric	X7R	Automotive SMPS Filtering	50 VDC	10 %	0.022 µF	3.2 mm	2.5 mm	0.126 in	0.098 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.7 µF ±20% 50V Ceramic Capacitor X7R 1210 (3225 Metric)
