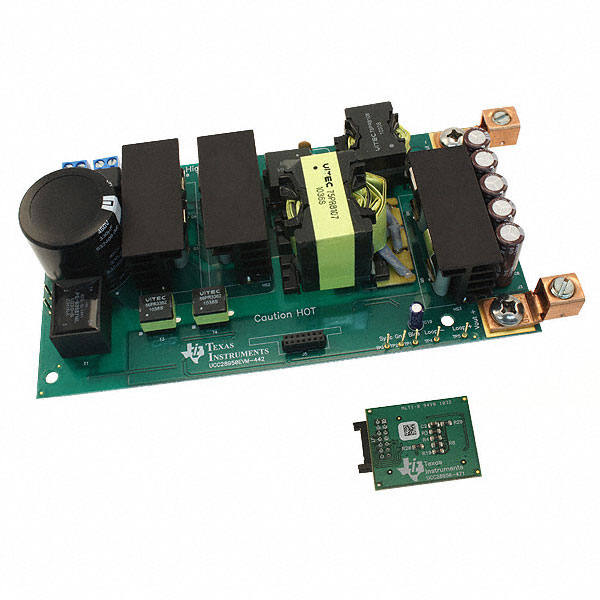

UCC28950EVM-442

Active

Texas Instruments

EVAL MODULE FOR UCC28950-442

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UCC28950EVM-442

Active

Texas Instruments

EVAL MODULE FOR UCC28950-442

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC28950EVM-442

Board Type	Fully Populated
Current - Output	50 A
Main Purpose	DC/DC, Step Down
Outputs and Type	Isolated
Outputs and Type	1
Power - Output	600 W
Regulator Topology	Full-Bridge
Supplied Contents	Board(s)
Utilized IC / Part	UCC28950-442
Voltage - Input [Max]	410 V
Voltage - Input [Min]	370 V
Voltage - Output	12 V

UCC28950-Q1 Series

Automotive 8V to 20V full-bridge, phase-shifted PWM controller with synchronous rectification

Part	Output Type	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Control Features	Mounting Type	Function	Output Phases	Output Configuration	Duty Cycle (Max)	Number of Outputs	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Switching [Min]	Frequency - Switching [Max]	Topology	Grade	Qualification	Power - Output	Supplied Contents	Regulator Topology	Outputs and Type	Outputs and Type	Utilized IC / Part	Current - Output	Board Type	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output
Texas Instruments UCC28950PW	Transistor Driver	24-TSSOP	8 V	17 V	Dead Time Control Enable Frequency Control Soft Start	Surface Mount	Step-Up/Step-Down	1	Positive	95 %	6	24-TSSOP	0.173 in 4.4 mm	-40 °C	125 ¯C	50 kHz	1 MHz	Full-Bridge
Texas Instruments UCC28950QPWRQ1	Transistor Driver	24-TSSOP	8 V	17 V	Dead Time Control Enable Frequency Control Soft Start	Surface Mount	Step-Up/Step-Down	1	Positive	95 %	6	24-TSSOP	0.173 in 4.4 mm	-40 °C	125 ¯C	50 kHz	1 MHz	Full-Bridge	Automotive	AEC-Q100
Texas Instruments UCC28950EVM-442																					600 W	Board(s)	Full-Bridge	Isolated	1	UCC28950-442	50 A	Fully Populated	DC/DC Step Down	370 V	410 V	12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 358.80

Description

General part information

UCC28950-Q1 Series

The UCC28951-Q1 controller is an enhanced version of the UCC28950-Q1. It is a fully compatible drop-in replacement for the UCC28950-Q1. Refer to application noteMaking the Correct Choice: UCC28950-Q1 or UCC28951-Q1to determine which controller to use.The UCC2895x-Q1 devices use advanced control of the full-bridge in addition to active control of the synchronous rectifier (SR) output stage.

ZVS operation ensured over a wide range of operating conditions, while the load current naturally tunes the switching delays of the secondary-side synchronous rectifiers(SR). This functionality maximizes overall system efficiency.

Easily get started with the UCC2895x-Q1 600W phase shifted full bridge design review/application note,
