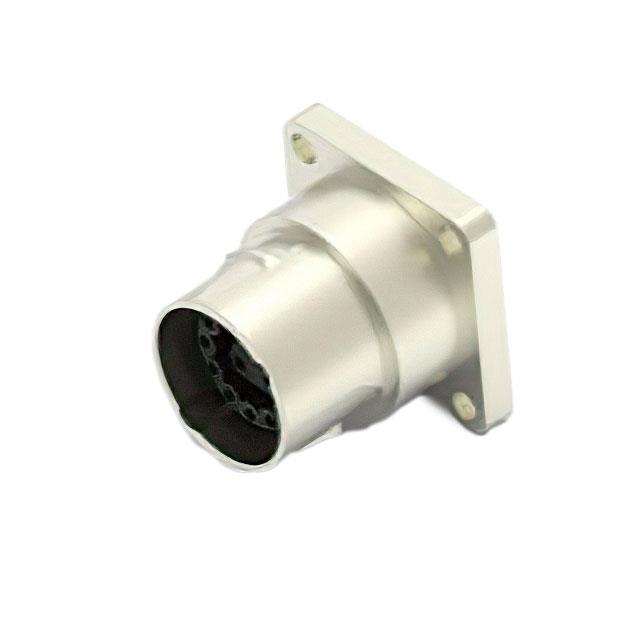

EEA204N00000001000

Active

TE Intercontec

CONN RCPT HSG MALE 15POS PNL MT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 15POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	EEA204N00000001000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Bayonet Lock
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	15
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Unshielded
Type	For Male Pins

Part	Note	Material Flammability Rating	Includes	Number of Positions	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Mounting Feature	Shell Material	Shielding	Connector Type	Type	Shell Finish	Fastening Type	Orientation	Insert Material	Housing Color
TE Intercontec EEA204N00000001000	Contacts Not Included	UL94 V-0	1 Connector 1 O-Ring	15	Circular	-20 C	130 °C	IP66/IP67	Flange	Zinc Die Cast	Unshielded	Receptacle Housing	For Male Pins	Nickel	Bayonet Lock	Keyed	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position Circular Connector Receptacle Housing Panel Mount

Technical documentation and resources
