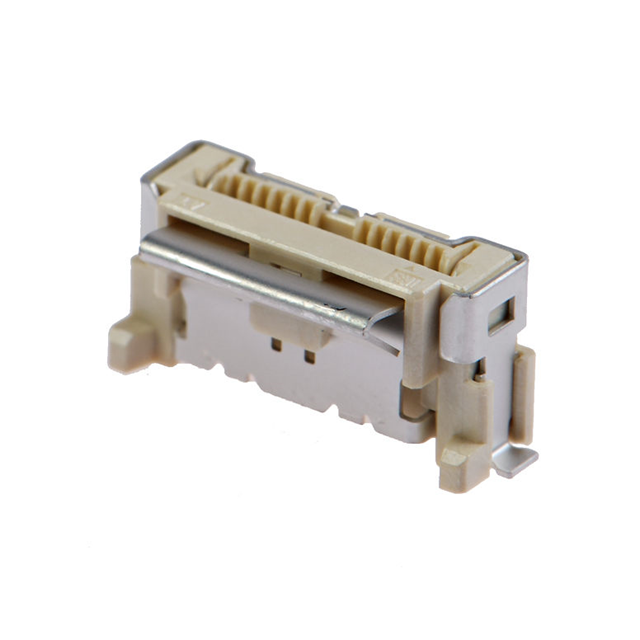

IMSA-11600S-15D-GFN4
ActiveIRISO USA Inc.
CONN FFC VERT 15POS 0.5MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IMSA-11600S-15D-GFN4
ActiveIRISO USA Inc.
CONN FFC VERT 15POS 0.5MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMSA-11600S-15D-GFN4 |
|---|---|
| Cable End Type | Notched |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| Features | Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 6 mm |
| Height Above Board | 0.236 in |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 15 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
IMSA-116 Series
| Part | Contact Material | Housing Material | Housing Color | Features | Mounting Type | Termination | Contact Finish | Connector/Contact Type | FFC, FCB Thickness | Cable End Type | Height Above Board | Height Above Board | Voltage Rating | Material Flammability Rating | Number of Positions | Pitch [x] | Pitch [x] | Current Rating (Amps) | Flat Flex Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IRISO USA Inc. | Copper Alloy | Liquid Crystal Polymer (LCP) | Natural | Solder Retention | Surface Mount | Solder | Gold | Contacts Vertical - 1 Sided | 0.3 mm | Notched | 6 mm | 0.236 in | 50 V | UL94 V-0 | 35 | 0.5 mm | 0.02 in | 0.5 A | FFC FPC |
IRISO USA Inc. | Copper Alloy | Liquid Crystal Polymer (LCP) | Natural | Solder Retention | Surface Mount | Solder | Gold | Contacts Vertical - 1 Sided | 0.3 mm | Notched | 6 mm | 0.236 in | 50 V | UL94 V-0 | 55 positions | 0.5 mm | 0.02 in | 0.5 A | FFC FPC |
IRISO USA Inc. | Copper Alloy | Liquid Crystal Polymer (LCP) | Natural | Solder Retention | Surface Mount | Solder | Gold | Contacts Vertical - 1 Sided | 0.3 mm | Notched | 6 mm | 0.236 in | 50 V | UL94 V-0 | 30 | 0.5 mm | 0.02 in | 0.5 A | FFC FPC |
IRISO USA Inc. | Copper Alloy | Liquid Crystal Polymer (LCP) | Natural | Solder Retention | Surface Mount | Solder | Gold | Contacts Vertical - 1 Sided | 0.3 mm | Notched | 6 mm | 0.236 in | 50 V | UL94 V-0 | 40 | 0.5 mm | 0.02 in | 0.5 A | FFC FPC |
IRISO USA Inc. | Copper Alloy | Liquid Crystal Polymer (LCP) | Natural | Solder Retention | Surface Mount | Solder | Gold | Contacts Vertical - 1 Sided | 0.3 mm | Notched | 6 mm | 0.236 in | 50 V | UL94 V-0 | 15 | 0.5 mm | 0.02 in | 0.5 A | FFC FPC |
IRISO USA Inc. | Copper Alloy | Liquid Crystal Polymer (LCP) | Natural | Solder Retention | Surface Mount | Solder | Gold | Contacts Vertical - 1 Sided | 0.3 mm | Notched | 6 mm | 0.236 in | 50 V | UL94 V-0 | 60 | 0.5 mm | 0.02 in | 0.5 A | FFC FPC |
IRISO USA Inc. | Copper Alloy | Liquid Crystal Polymer (LCP) | Natural | Solder Retention | Surface Mount | Solder | Gold | Contacts Vertical - 1 Sided | 0.3 mm | Notched | 6 mm | 0.236 in | 50 V | UL94 V-0 | 20 | 0.5 mm | 0.02 in | 0.5 A | FFC FPC |
IRISO USA Inc. | Copper Alloy | Liquid Crystal Polymer (LCP) | Natural | Solder Retention | Surface Mount | Solder | Gold | Contacts Vertical - 1 Sided | 0.3 mm | Notched | 6 mm | 0.236 in | 50 V | UL94 V-0 | 35 | 0.5 mm | 0.02 in | 0.5 A | FFC FPC |
IRISO USA Inc. | Copper Alloy | Liquid Crystal Polymer (LCP) | Natural | Solder Retention | Surface Mount | Solder | Gold | Contacts Vertical - 1 Sided | 0.3 mm | Notched | 6 mm | 0.236 in | 50 V | UL94 V-0 | 10 | 0.5 mm | 0.02 in | 0.5 A | FFC FPC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.86 | |
| 10 | $ 1.62 | |||
| 25 | $ 1.55 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.44 | |||
| 250 | $ 1.31 | |||
| 500 | $ 1.20 | |||
| Tape & Reel (TR) | 1000 | $ 1.03 | ||
| 2000 | $ 1.00 | |||
| 3000 | $ 0.96 | |||
| 5000 | $ 0.91 | |||
| 10000 | $ 0.89 | |||
Description
General part information
IMSA-116 Series
15 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
