BU-P5168-2

Active

Mueller Electric Co

BANANA TEST CONNECTOR, JACK, CABLE MOUNT, 15 A, 5 KV, NICKEL PLATED CONTACTS, RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BU-P5168-2

Active

Mueller Electric Co

BANANA TEST CONNECTOR, JACK, CABLE MOUNT, 15 A, 5 KV, NICKEL PLATED CONTACTS, RED

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P5168-2

Body Material	Polyvinyl Chloride (PVC)
Color	Red
Contact Finish	Nickel
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-70 °C
Plug/Mating Plug Diameter	Standard Banana
Termination	Crimp or Solder
Type	Banana Jack

BU-P5168 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Color	Type	Insulation	Mounting Type	Contact Material	Termination	Contact Finish	Plug/Mating Plug Diameter	Body Material
Mueller Electric Co BU-P5168-2	50 °C	-70 °C	Female	Red	Banana Jack	Fully Insulated	Free Hanging (In-Line)	Brass	Crimp or Solder	Nickel	Standard Banana	Polyvinyl Chloride (PVC)
Mueller Electric Co BU-P5168-0	50 °C	-70 °C	Female	Black	Banana Jack	Fully Insulated	Free Hanging (In-Line)	Brass	Crimp or Solder	Nickel	Standard Banana	Polyvinyl Chloride (PVC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.68
		10	$ 3.06
		100	$ 2.91
		500	$ 2.82
		1000	$ 2.68
Newark	Each	100	$ 3.77
		500	$ 3.53
		1000	$ 3.24
		2500	$ 2.96

Description

General part information

BU-P5168 Series

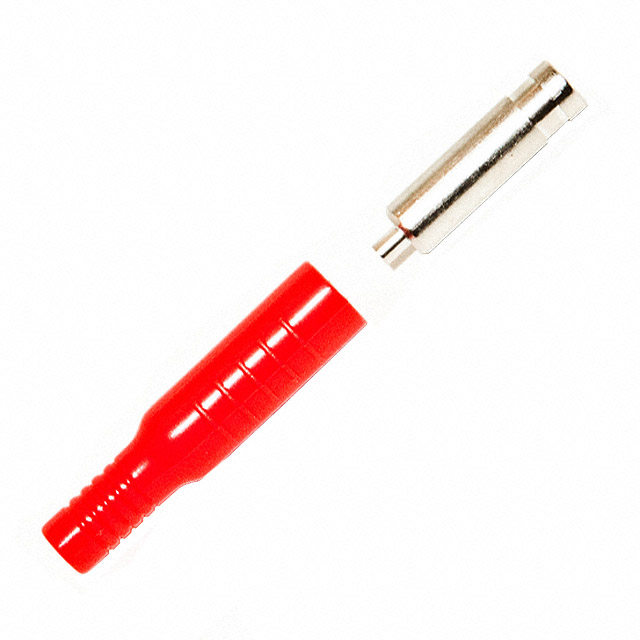

The BU-P5168-2 is a 15A red In-Line Banana Jack made of nickel-plated brass body with contacts and flexible PVC insulator. It is suitable for use with the 14 and 16AWG wires that can be soldered or crimped.
