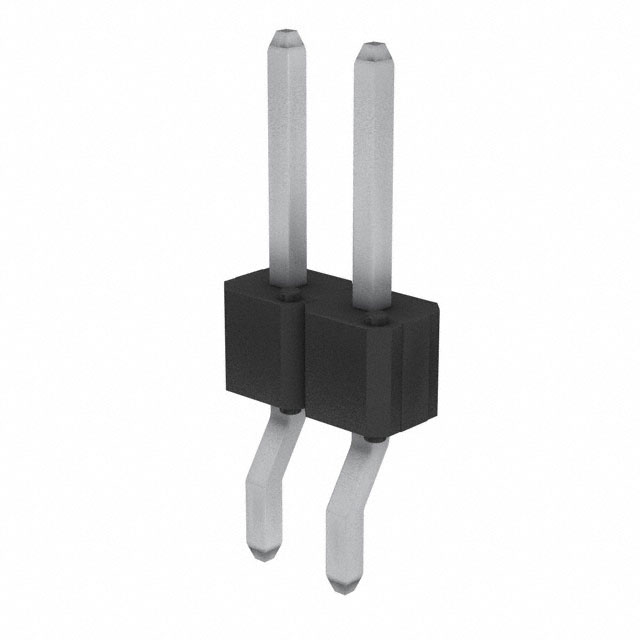

CONN HEADER SMD R/A 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsbergstik productpresentation Other Related Document Datasheet +1

10027011-402HLF

Active

Amphenol ICC (FCI)

CONN HEADER SMD R/A 2POS 2.54MM

Deep-Dive with AI

Documentsbergstik productpresentation Other Related Document Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10027011-402HLF

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.095 in
Insulation Height [z]	2.41 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

10027011 Series

Part	Connector Type	Termination	Number of Positions	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Number of Rows	Contact Type	Mounting Type	Fastening Type	Current Rating (Amps)	Contact Material	Shrouding	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating [x]	Contact Length - Mating	Insulation Color	Material Flammability Rating	Contact Finish - Mating	Number of Positions
Amphenol ICC (FCI) 10027011-404HWLF	Breakaway Header	Solder	4	Tin	0.1 in	2.54 mm	Square	2.54 çm	100 çin	All	1	Male Pin	Surface Mount Right Angle	Push-Pull	3 A	Phosphor Bronze	Unshrouded	0.095 in	2.41 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Black	UL94 V-0
Amphenol ICC (FCI) 10027011-108HLF	Breakaway Header	Solder	8	Tin	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin	All	1	Male Pin	Surface Mount Right Angle	Push-Pull	3 A	Phosphor Bronze	Unshrouded	0.095 in	2.41 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Black	UL94 V-0	Gold or Gold GXT™
Amphenol ICC (FCI) 10027011-416H	Breakaway Header	Solder			0.1 in	2.54 mm	Square	2.54 çm	100 çin	All	1	Male Pin	Surface Mount Right Angle	Push-Pull	3 A	Phosphor Bronze	Unshrouded	0.095 in	2.41 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Black	UL94 V-0		16
Amphenol ICC (FCI) 10027011-405H	Breakaway Header	Solder			0.1 in	2.54 mm	Square	2.54 çm	100 çin	All	1	Male Pin	Surface Mount Right Angle	Push-Pull	3 A	Phosphor Bronze	Unshrouded	0.095 in	2.41 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Black	UL94 V-0
Amphenol ICC (FCI) 10027011-405HLF	Breakaway Header	Solder		Tin	0.1 in	2.54 mm	Square	2.54 çm	100 çin	All	1	Male Pin	Surface Mount Right Angle	Push-Pull	3 A	Phosphor Bronze	Unshrouded	0.095 in	2.41 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Black	UL94 V-0
Amphenol ICC (FCI) 10027011-204HWLF	Breakaway Header	Solder	4	Tin	0.1 in	2.54 mm	Square	0.38 µm	15 µin	All	1	Male Pin	Surface Mount Right Angle	Push-Pull	3 A	Phosphor Bronze	Unshrouded	0.095 in	2.41 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Black	UL94 V-0	Gold or Gold GXT™
Amphenol ICC (FCI) 10027011-204HTLF	Breakaway Header	Solder	4	Tin	0.1 in	2.54 mm	Square	0.38 µm	15 µin	All	1	Male Pin	Surface Mount Right Angle	Push-Pull	3 A	Phosphor Bronze	Unshrouded	0.095 in	2.41 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Black	UL94 V-0	Gold or Gold GXT™
Amphenol ICC (FCI) 10027011-402HLF	Breakaway Header	Solder	2	Tin	0.1 in	2.54 mm	Square	2.54 çm	100 çin	All	1	Male Pin	Surface Mount Right Angle	Push-Pull	3 A	Phosphor Bronze	Unshrouded	0.095 in	2.41 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Black	UL94 V-0
Amphenol ICC (FCI) 10027011-103HLF	Breakaway Header	Solder		Tin	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin	All	1	Male Pin	Surface Mount Right Angle	Push-Pull	3 A	Phosphor Bronze	Unshrouded	0.095 in	2.41 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Black	UL94 V-0	Gold or Gold GXT™
Amphenol ICC (FCI) 10027011-103HWLF	Breakaway Header	Solder		Tin	0.1 in	2.54 mm	Square	0.76 Ám	30 Áin	All	1	Male Pin	Surface Mount Right Angle	Push-Pull	3 A	Phosphor Bronze	Unshrouded	0.095 in	2.41 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Black	UL94 V-0	Gold or Gold GXT™
