24_MCX-75-2-1/113_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

24_MCX-75-2-1/113_NE

Technical Specifications

Parameters and characteristics for this part

Specification	24_MCX-75-2-1/113_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	187, RG-179
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	170 V

Part	Mating Cycles	Connector Style	Shield Termination	Center Contact Plating	Frequency - Max [Max]	Housing Color	Body Material	Center Contact Material	Fastening Type	Impedance	Connector Type	Cable Group	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Voltage Rating	Number of Ports	Body Finish	Contact Termination	Dielectric Material
Huber+Suhner, Inc. 24_MCX-75-2-1/113_NE	500	MCX	Crimp	Gold	6000 MHz	Silver	Brass	Beryllium Copper	Snap-On	75 Ohms	Female Socket Jack	187 RG-179	155 °C	-55 °C	Bulkhead	170 V	1	White Bronze	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

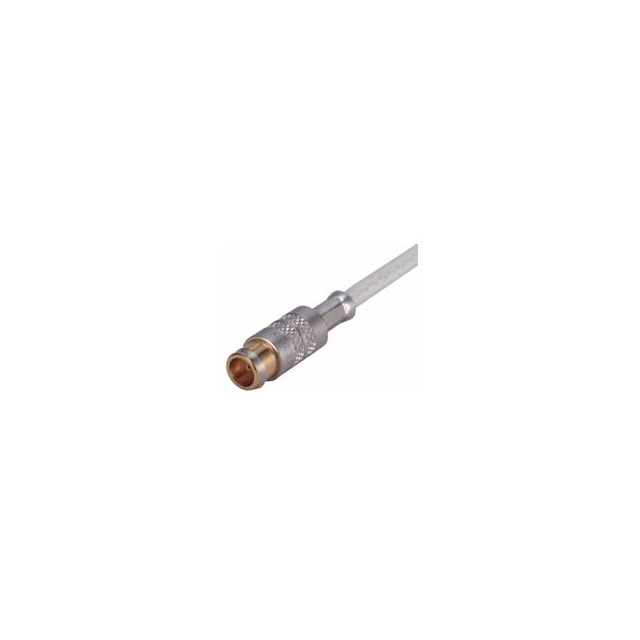

MCX Connector Jack, Female Socket 75 Ohms Panel Mount Crimp
