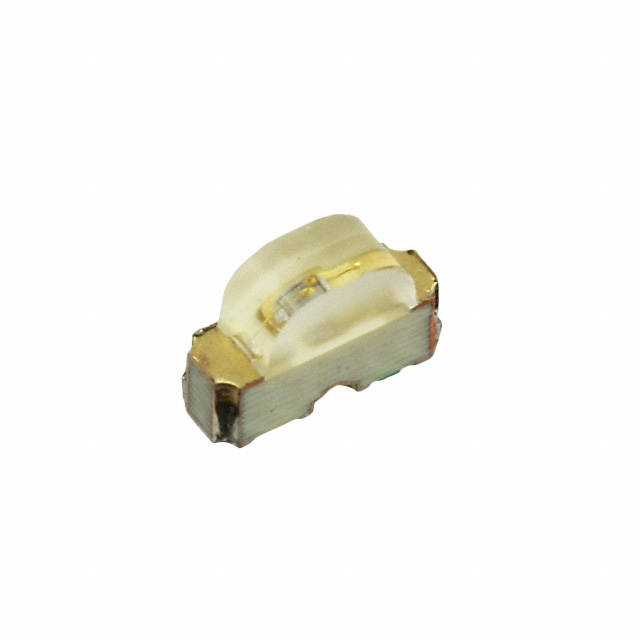

APBVA3010YSGC

Active

Kingbright

LED GRN/YLW CLR CHIP SMD R/A

Search across all available documentation for this part.

Active

Kingbright

LED GRN/YLW CLR CHIP SMD R/A

Technical Specifications

Parameters and characteristics for this part

Part	Current - Test	Supplier Device Package	Wavelength - Peak	Mounting Type	Millicandela Rating [custom]	Millicandela Rating [custom]	Package / Case	Color	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Viewing Angle	Lens Style	Configuration	Lens Size [x]	Lens Size [y]	Height (Max) [Max] [z]	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Millicandela Rating	Current - Test	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]
Kingbright APBVA3010EYC	20mA Red 20mA Yellow	Chip LED	590 nm 627 nm	Surface Mount Right Angle	15 mcd	6 mcd	3-SMD No Lead	Red Yellow	2 V 2.1 V	588 nm 625 nm	140 °	Rectangle with Domed Top	Common Anode	2 mm	1 mm	1 mm	Colorless	2 mm	3 mm	Clear
Kingbright APBVA3010SURKCGKC		Chip LED		Surface Mount Right Angle			3-SMD No Lead	Green Red		570 nm 630 nm	140 °	Rectangle with Domed Top	Common Anode	2 mm	1 mm	1 mm	Colorless	2 mm	3 mm	Clear	50 mcd 200 mcd	20 mA 20 mA	2.1 V	1.95 V	574 nm	650 nm
Kingbright APBVA3010YSGC		Chip LED	565 nm 590 nm	Surface Mount Right Angle			3-SMD No Lead	Green Yellow	2.1 V 2.2 V	568 nm 588 nm	140 °	Rectangle with Domed Top	Common Anode	2 mm	1 mm	1 mm	Colorless	2 mm	3 mm	Clear	6 mcd 15 mcd	20 mA 20 mA
Kingbright APBVA3010SYKCGKC		Chip LED	574 nm 590 nm	Surface Mount Right Angle			3-SMD No Lead	Green Yellow	2 V 2.1 V	570 nm 590 nm	140 °	Rectangle with Domed Top	Common Anode	2 mm	1 mm	1 mm	Colorless	2 mm	3 mm	Clear	50 mcd 150 mcd	20 mA 20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Green, Yellow 568nm Green, 588nm Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow 3-SMD, No Lead
