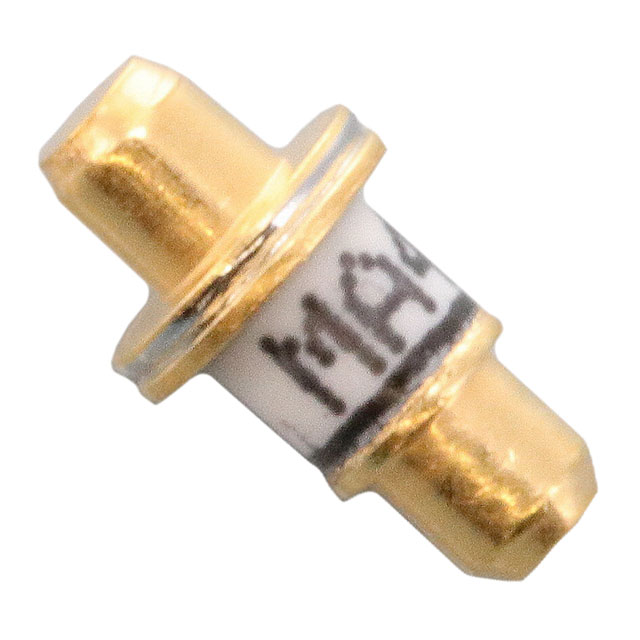

MA4L022-30
ActiveMACOM Technology Solutions
DIODE,PIN,CERAMIC_PKG,SI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MA4L022-30
ActiveMACOM Technology Solutions
DIODE,PIN,CERAMIC_PKG,SI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MA4L022-30 |
|---|---|
| Capacitance @ Vr, F | 0.17 pF |
| Current - Max [Max] | 100 mA |
| Diode Type | PIN - Single |
| Operating Temperature | 175 °C |
| Package / Case | Stud |
| Power Dissipation (Max) | 3 W |
| Resistance @ If, F | 2 Ohm |
| Voltage - Peak Reverse (Max) [Max] | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 47.42 | |
| 10 | $ 38.87 | |||
| 50 | $ 35.45 | |||
| 100 | $ 34.39 | |||
| 250 | $ 33.27 | |||
Description
General part information
MA4L022 Series
RF Diode PIN - Single 35V 100 mA 3 W
Documents
Technical documentation and resources
