EZB2-405H03

Active

STORM INTERFACE

SWITCH KEYPAD 2KEY ILLUM

Search across all available documentation for this part.

Active

STORM INTERFACE

SWITCH KEYPAD 2KEY ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	EZB2-405H03

Approval Agency	FCC, CE, UL
Illumination	Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Key Color	White
Key Type	Polymer
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Type	Conductive Rubber
Termination Style	Cable with Connector

Part	Switch Type	Termination Style	Illumination	Approval Agency	Key Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Key Type	Ingress Protection
STORM INTERFACE EZB2-405003	Conductive Rubber	Cable with Connector	Illuminated	CE FCC UL	White	-20 C	70 °C	Panel Mount Front	Polymer	IP65 - Dust Tight Water Resistant
STORM INTERFACE EZB2-405H03	Conductive Rubber	Cable with Connector	Illuminated	CE FCC UL	White	-20 C	70 °C	Panel Mount Front	Polymer	IP65 - Dust Tight Water Resistant
STORM INTERFACE EZB2-505003	Conductive Rubber	Cable with Connector	Illuminated	CE FCC UL	White	-20 C	70 °C	Panel Mount Front	Polymer	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

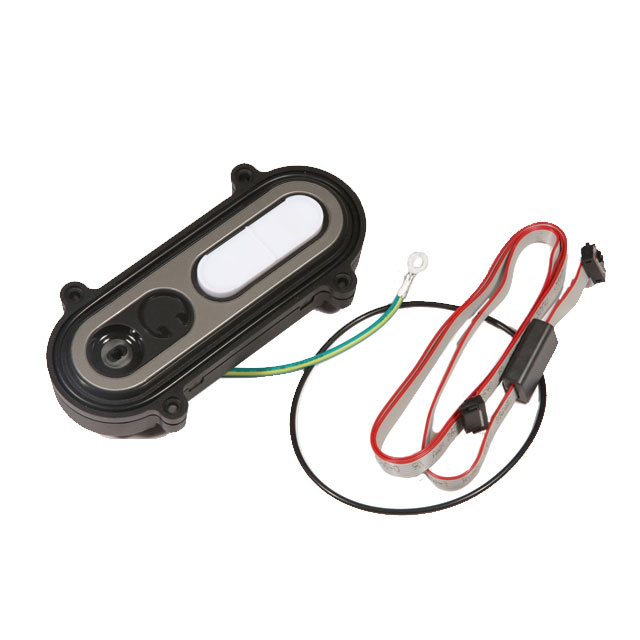

Keypad Switch 2 Polymer Keys Conductive Rubber Contacts Output Illuminated

Technical documentation and resources

No documents available
