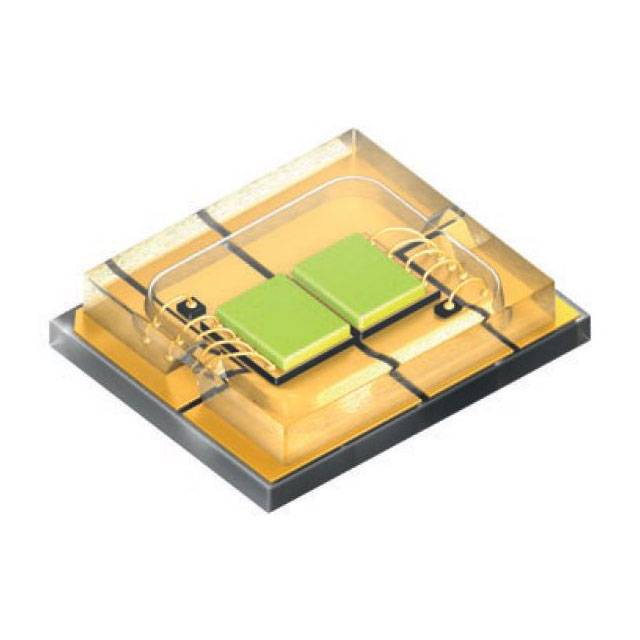

LE CG Q7WP-7Q7R-2-0-A40-R18-Z
Obsoleteams-OSRAM USA INC.
LED GREEN SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LE CG Q7WP-7Q7R-2-0-A40-R18-Z
Obsoleteams-OSRAM USA INC.
LED GREEN SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LE CG Q7WP-7Q7R-2-0-A40-R18-Z |
|---|---|
| Color | Green |
| Configuration | Standard |
| Height (Max) [Max] | 1.25 mm |
| Lens Color | Colorless |
| Lens Size [x] | 4.93 mm |
| Lens Size [y] | 4.49 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead Exposed Pad |
| Size / Dimension [x] | 5.75 mm |
| Size / Dimension [y] | 4.68 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2.95 V |
| Wavelength - Peak | 520 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LECGQ Series
Green LED Indication - Discrete 2.95V 8-SMD, No Lead Exposed Pad
Documents
Technical documentation and resources
