5182-2SG-315

Active

Conxall/Switchcraft

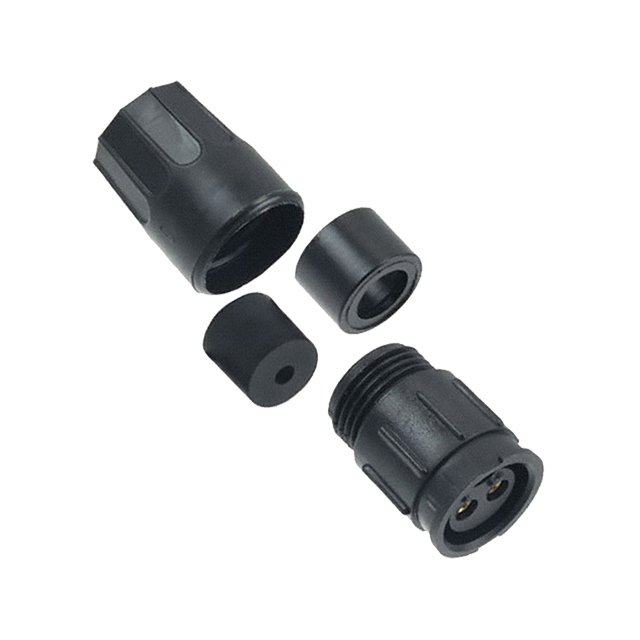

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5182-2SG-315

Active

Conxall/Switchcraft

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5182-2SG-315

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.17 in, 0.15 in
Cable Opening [custom]	3.81 mm, 4.32 mm
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

5182-2SG Series

Part	Connector Type	Features	Fastening Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Backshell Material, Plating	Contact Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Ingress Protection	Orientation	Color	Number of Positions	Primary Material	Voltage Rating	Contact Finish - Mating	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 5182-2SG-530	Receptacle Female Sockets	Backshell Cable Clamp	Bayonet Lock	7.62 mm	0.32 in	8.13 mm	0.3 in	Nylon Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold
Conxall/Switchcraft 5182-2SG-518	Receptacle Female Sockets	Backshell Cable Clamp	Bayonet Lock					Nylon Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5182-2SG-3DC	Receptacle Female Sockets	Backshell	Bayonet Lock					Nylon Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold
Conxall/Switchcraft 5182-2SG-521	Receptacle Female Sockets	Backshell Cable Clamp	Bayonet Lock	5.33 mm	0.23 in		0.21 in	Nylon Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold					5.84 mm
Conxall/Switchcraft 5182-2SG-315	Receptacle Female Sockets	Backshell	Bayonet Lock					Nylon Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold						0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 5182-2SG-528	Receptacle Female Sockets	Backshell Cable Clamp	Bayonet Lock	7.11 mm	0.29 in		0.28 in	Nylon Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold					7.37 mm
Conxall/Switchcraft 5182-2SG-524	Receptacle Female Sockets	Backshell Cable Clamp	Bayonet Lock	6.1 mm	0.27 in		0.24 in	Nylon Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold					6.86 mm
Conxall/Switchcraft 5182-2SG-515	Receptacle Female Sockets	Backshell Cable Clamp	Bayonet Lock					Nylon Polyamide (PA)	Brass	Free Hanging (In-Line)	-40 °C	115 °C	Unshielded	Weathertight	Keyed	Black	2	Plastic	600 V	Gold						0.15 in 0.17 in	3.81 mm 4.32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.23
		10	$ 6.51
		25	$ 6.13
		50	$ 5.98
		100	$ 5.82
		300	$ 5.54

Description

General part information

5182-2SG Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
