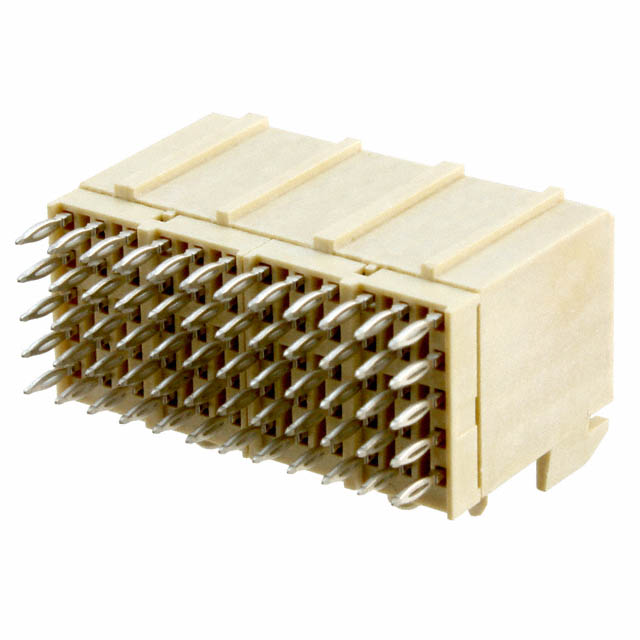

HM1S52FER400H6PLF

Active

Amphenol ICC (FCI)

CONN RCPT 60POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT 60POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	HM1S52FER400H6PLF

Color	Natural
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Spacer, Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Number of Positions	Mounting Type	Material Flammability Rating	Connector Type	Features	Color	Pitch [x]	Pitch [x]	Number of Positions Loaded	Termination	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows
Amphenol ICC (FCI) HM1S52FER000H6PLF	60	Through Hole	UL94 V-0	Receptacle Female Sockets	Board Guide Spacer	Natural	0.079 in	2 mm	All	Press-Fit	Gold
Amphenol ICC (FCI) HM1S52TRR000H6LF
Amphenol ICC (FCI) HM1S52FER400H6PLF	60	Through Hole	UL94 V-0	Receptacle Female Sockets	Board Guide Spacer	Natural	0.079 in	2 mm	All	Press-Fit	Gold	105 ░C	-55 °C	0.76 Ám	30 Áin	5
Amphenol ICC (FCI) HM1S52TSR400H6PLF
