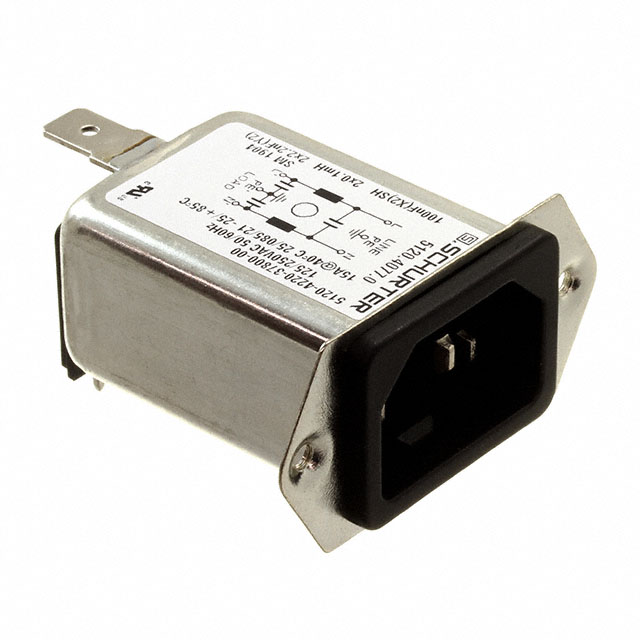

5120.4077.0

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	5120.4077.0

Accomodates a Fuse	False
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.5 mm
Panel Cutout Dimensions [y]	22.5 mm
Panel Thickness	8 mm
Panel Thickness	0.315 in
Termination	Solder

Part	Accomodates a Fuse	Ingress Protection	Approval Agency	Material Flammability Rating	Filter Type	Connector Style	Mounting Type	Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Connector Type	Panel Thickness	Panel Thickness
SCHURTER Inc. 5120.4077.0		IP40	CCC cULus ENEC	UL94 V-0	Filtered (EMI RFI) - Commercial	IEC 320-C14	Panel Mount Flange Through Hole Right Angle	Shielded	22.5 mm	30.5 mm	Solder	Male Blades Receptacle	8 mm	0.315 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.34

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
