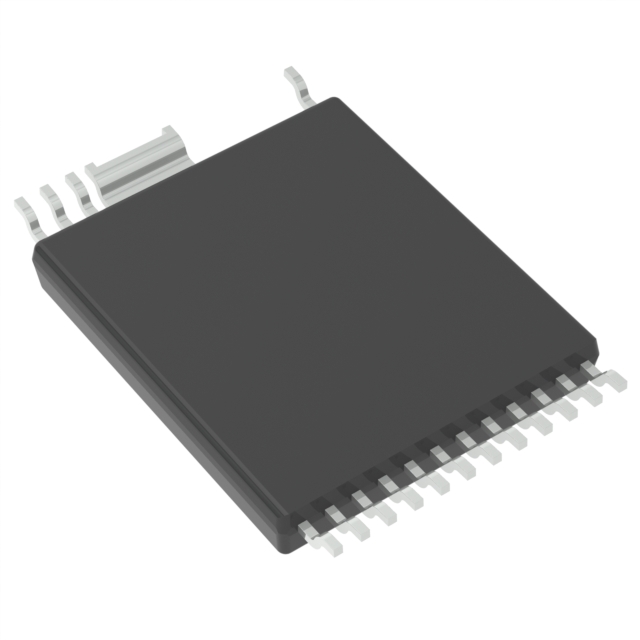

INN3165C-H114-TL
ActivePower Integrations
25 W (85-265 VAC)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
INN3165C-H114-TL
ActivePower Integrations
25 W (85-265 VAC)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | INN3165C-H114-TL |
|---|---|
| Control Features | Frequency Control, Soft Start, EN |
| Fault Protection | Over Voltage, Over Load, Over Temperature, UVLO, Short Circuit, Current Limiting |
| Frequency - Switching | 80 kHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Output Isolation | Isolated |
| Package / Case | 17 Leads |
| Package / Case | 24-PowerSMD Module |
| Package / Case [x] | 0.425 in |
| Package / Case [x] | 10.8 mm |
| Power (Watts) | 30 W |
| Supplier Device Package | InSOP-24D |
| Topology | Flyback, Secondary Side SR |
| Voltage - Breakdown | 650 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.36 | |
| 100 | $ 1.13 | |||
| 1000 | $ 0.96 | |||
| Digi-Reel® | 1 | $ 1.36 | ||
| 100 | $ 1.13 | |||
| 1000 | $ 0.96 | |||
| Tape & Reel (TR) | 2000 | $ 0.96 | ||
| 10000 | $ 0.82 | |||
Description
General part information
INN3165 Series
Converter Offline Flyback, Secondary Side SR Topology 80kHz InSOP-24D
