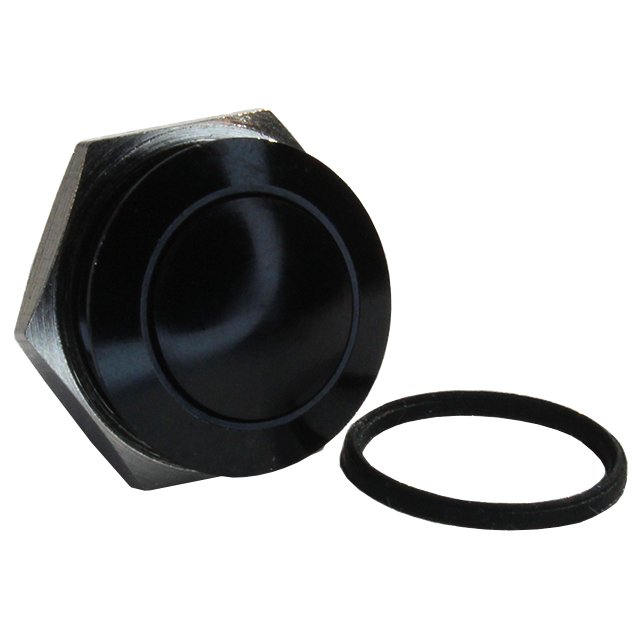

BH16NMBZX

Active

CIT Relay and Switch

SWITCH PB SPST 1A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPST 1A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	BH16NMBZX

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	2 A, 1 A
Electrical Life	50000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Anti-Vandal
Voltage Rating - AC	125 V
Voltage Rating - DC	36 VDC

Part	Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Termination Style	Actuator Type	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Electrical Life	Color - Actuator/Cap	Circuit	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - DC
CIT Relay and Switch BH16NMBZX	Anti-Vandal	No Marking	16 mm	Screw Terminal	Button Round	1 A 2 A	125 V	Off-Mom	50000 Cycles	Black	SPST	IP67 - Dust Tight Waterproof	55 °C	-25 °C	Panel Mount Front	36 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Anti-Vandal Panel Mount, Front
