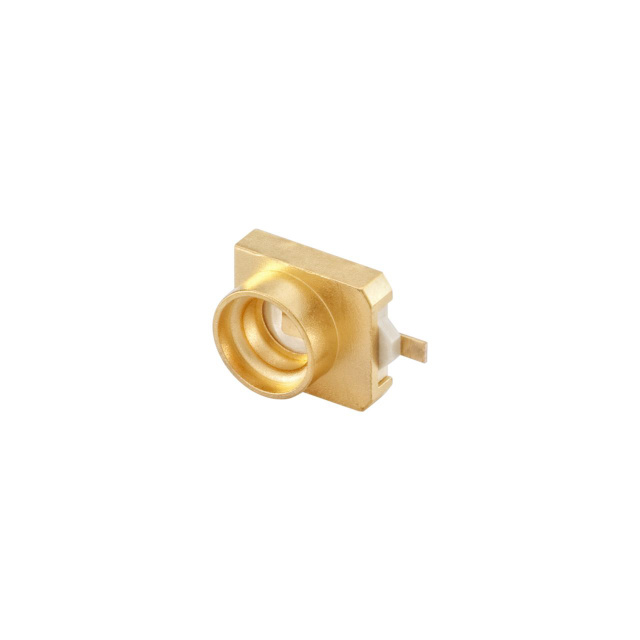

16P141-40ML4
ObsoleteRosenberger
FMC STRAIGHT JACK PCB
Deep-Dive with AI
Search across all available documentation for this part.
16P141-40ML4
ObsoleteRosenberger
FMC STRAIGHT JACK PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 16P141-40ML4 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | FMC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 10 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
16P141 Series
FMC Connector Jack, Female Socket 50 Ohms Surface Mount Solder
