M7965-46

Active

Harwin Inc.

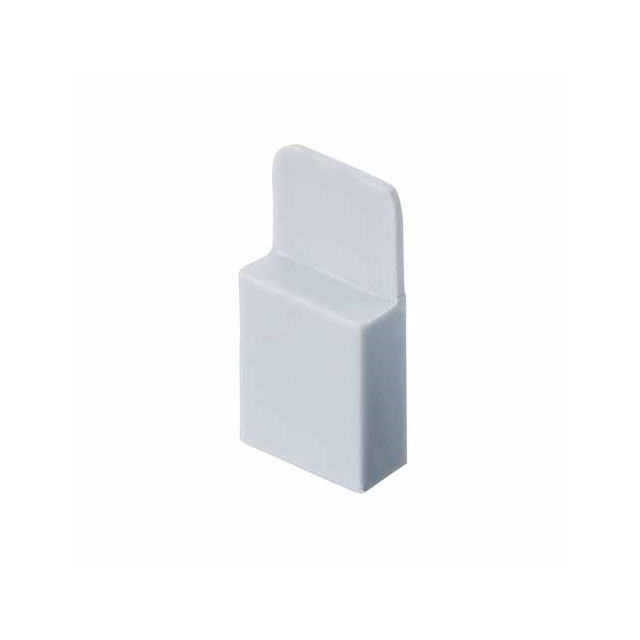

2 POS. FEMALE JUMPER SOCKET, HANDLE SHUNT, GREY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

2 POS. FEMALE JUMPER SOCKET, HANDLE SHUNT, GREY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M7965-46

Color	Gray
Contact Finish	Tin
Contact Finish Thickness	3 µm
Contact Finish Thickness	118.1 µin
Current Rating (Amps)	3 A
Gender	Female Sockets
Height [z]	10.31 mm
Height [z]	0.406 in
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Closed Top, Grip
Voltage Rating	250 VDC

Part	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish Thickness	Contact Finish Thickness	Type	Current Rating (Amps)	Contact Finish	Height [z]	Height [z]	Material Flammability Rating	Color	Pitch [x]	Pitch [x]	Voltage Rating	Gender
Harwin Inc. M7965-46	1 x 2	2	3 µm	118.1 µin	Closed Top Grip	3 A	Tin	10.31 mm	0.406 in	UL94 V-0	Gray	2.54 mm	0.1 in	250 VDC	Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	22000	$ 0.24
Newark	Each	1000	$ 0.32

General part information

2 (1 x 2) Position Shunt Connector Gray Closed Top, Grip 0.100" (2.54mm) Tin
