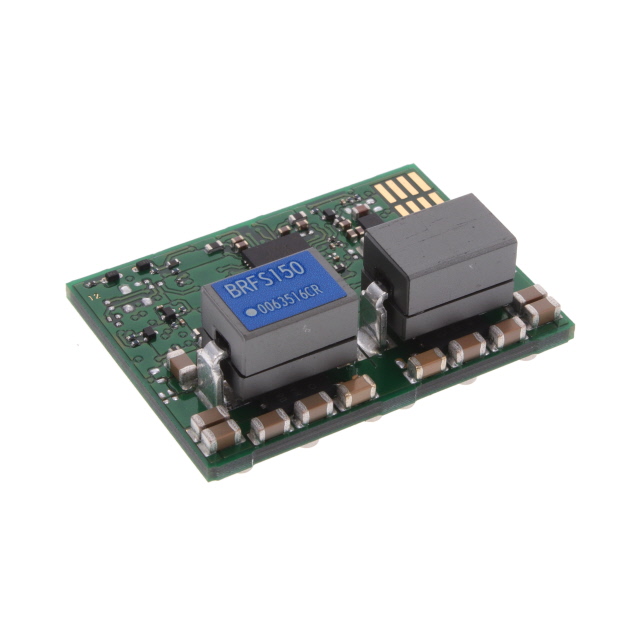

BRFS150-R

Active

Cosel USA, Inc.

DC DC CONVERTER 0.6-1.8V

Search across all available documentation for this part.

Active

Cosel USA, Inc.

DC DC CONVERTER 0.6-1.8V

Technical Specifications

Parameters and characteristics for this part

Specification	BRFS150-R

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Control Features	Active High, Enable
Current - Output (Max) [Max]	150 A
Efficiency	89 %
Features	Remote Sensing, OCP, Remote On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	20-SMD Module
Size / Dimension [x]	1.5 in
Size / Dimension [x]	38 mm
Size / Dimension [y]	27.7 mm
Size / Dimension [y]	1.09 in
Size / Dimension [z]	0.54 in
Size / Dimension [z]	13.8 mm
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	1.8 V
Voltage - Output 1 [Min]	0.6 V

Part	Current - Output (Max) [Max]	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Control Features	Efficiency	Package / Case	Approval Agency	Mounting Type	Type	Voltage - Input (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Outputs
Cosel USA, Inc. BRFS150-R	150 A	ITE (Commercial)	0.54 in	1.5 in	27.7 mm	38 mm	13.8 mm	1.09 in	Active High Enable	89 %	20-SMD Module	CE cURus TUV	Surface Mount	Non-Isolated PoL Module	14 V	1.8 V	0.6 V	4.5 V	85 °C	-40 °C	OCP Remote On/Off Remote Sensing	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 84.45

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 1.8V 150A 4.5V - 14V Input
