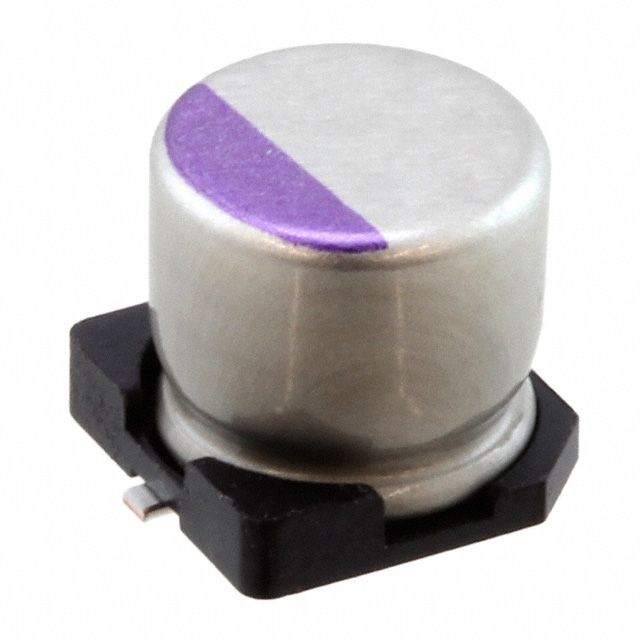

10SVPE220M
ActivePanasonic Industrial Automation Sales
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID
Deep-Dive with AI
Search across all available documentation for this part.
10SVPE220M
ActivePanasonic Industrial Automation Sales
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10SVPE220M |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| ESR (Equivalent Series Resistance) | 20 mOhms |
| Height - Seated (Max) [Max] | 0.236 in |
| Height - Seated (Max) [Max] | 6 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ripple Current @ High Frequency | 2.7 A |
| Ripple Current @ Low Frequency | 135 mA |
| Size / Dimension [diameter] | 0.248 in |
| Size / Dimension [diameter] | 6.3 mm |
| Surface Mount Land Size [x] | 6.6 mm |
| Surface Mount Land Size [x] | 0.26 in |
| Surface Mount Land Size [y] | 0.26 in |
| Surface Mount Land Size [y] | 6.6 mm |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.66 | |
| 10 | $ 1.54 | |||
| 50 | $ 1.44 | |||
| 100 | $ 1.19 | |||
| 500 | $ 0.95 | |||
| Digi-Reel® | 1 | $ 1.66 | ||
| 10 | $ 1.54 | |||
| 50 | $ 1.44 | |||
| 100 | $ 1.19 | |||
| 500 | $ 0.95 | |||
| Tape & Reel (TR) | 1000 | $ 0.84 | ||
| 2000 | $ 0.81 | |||
| 3000 | $ 0.78 | |||
| 5000 | $ 0.77 | |||
Description
General part information
10SVPE Series
220 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 20mOhm 2000 Hrs @ 105°C
Documents
Technical documentation and resources
No documents available
