3110-26-003-12-00-TR
ActiveCnC Tech, LLC

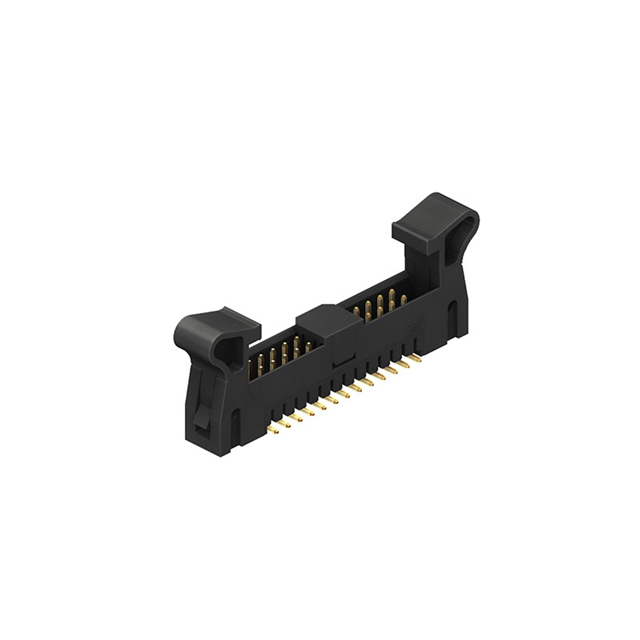

HEADER, 0.079" (2.00MM), 26 POS.
Deep-Dive with AI
Search across all available documentation for this part.
3110-26-003-12-00-TR
ActiveCnC Tech, LLC
HEADER, 0.079" (2.00MM), 26 POS.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3110-26-003-12-00-TR |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Features | Keying Slot |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
3110-26 Series
| Part | Number of Positions | Contact Shape | Number of Rows | Contact Finish - Mating | Shrouding | Insulation Material | Termination | Style | Contact Material | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Type | Features | Connector Type | Material Flammability Rating | Pitch - Mating [x] | Pitch - Mating [x] | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Mounting Type | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | 26 | Square | 2 | Gold | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT) | Solder | Board to Cable/Wire | Brass | Push-Pull | -40 °C | 105 ░C | Flash | Male Pin | Keying Slot | Header | UL94 V-0 | 0.079 in | 2 mm | 0.079 in | 2 mm | All | Surface Mount | ||
CnC Tech, LLC | 26 | Square | 2 | Gold | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT) | Solder | Board to Cable/Wire | Brass | Latch Lock/Eject Hooks Short | -40 °C | 105 ░C | Flash | Male Pin | Keying Slot | Header | UL94 V-0 | 0.079 in | 2 mm | 0.079 in | 2 mm | All | Through Hole | 0.122 " | 3.1 mm |
CnC Tech, LLC | 26 | Square | 2 | Gold | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT) | Solder | Board to Cable/Wire | Brass | Push-Pull | -40 °C | 105 ░C | Flash | Male Pin | Keying Slot | Header | UL94 V-0 | 0.079 in | 2 mm | 0.079 in | 2 mm | All | Through Hole | 0.122 " | 3.1 mm |
CnC Tech, LLC | 26 | Square | 2 | Gold | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT) | Solder | Board to Cable/Wire | Brass | Latch Lock/Eject Hooks Long | -40 °C | 105 ░C | Flash | Male Pin | Keying Slot | Header | UL94 V-0 | 0.079 in | 2 mm | 0.079 in | 2 mm | All | Surface Mount | ||
CnC Tech, LLC | 26 | Square | 2 | Gold | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT) | Solder | Board to Cable/Wire | Brass | Latch Lock/Eject Hooks Short | -40 °C | 105 ░C | Flash | Male Pin | Keying Slot | Header | UL94 V-0 | 0.079 in | 2 mm | 0.079 in | 2 mm | All | Surface Mount | ||
CnC Tech, LLC | 26 | Square | 2 | Gold | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT) | Solder | Board to Cable/Wire | Brass | Latch Lock/Eject Hooks Short | -40 °C | 105 ░C | Flash | Male Pin | Keying Slot | Header | UL94 V-0 | 0.079 in | 2 mm | 0.079 in | 2 mm | All | Surface Mount | ||
CnC Tech, LLC | 26 | Square | 2 | Gold | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT) | Solder | Board to Cable/Wire | Brass | Push-Pull | -40 °C | 105 ░C | Flash | Male Pin | Keying Slot | Header | UL94 V-0 | 0.079 in | 2 mm | 0.079 in | 2 mm | All | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.13 | |
| 10 | $ 1.85 | |||
| Digi-Reel® | 1 | $ 2.13 | ||
| 10 | $ 1.85 | |||
| Tape & Reel (TR) | 150 | $ 1.76 | ||
| 300 | $ 1.59 | |||
Description
General part information
3110-26 Series
Connector Header Surface Mount 26 position 0.079" (2.00mm)
