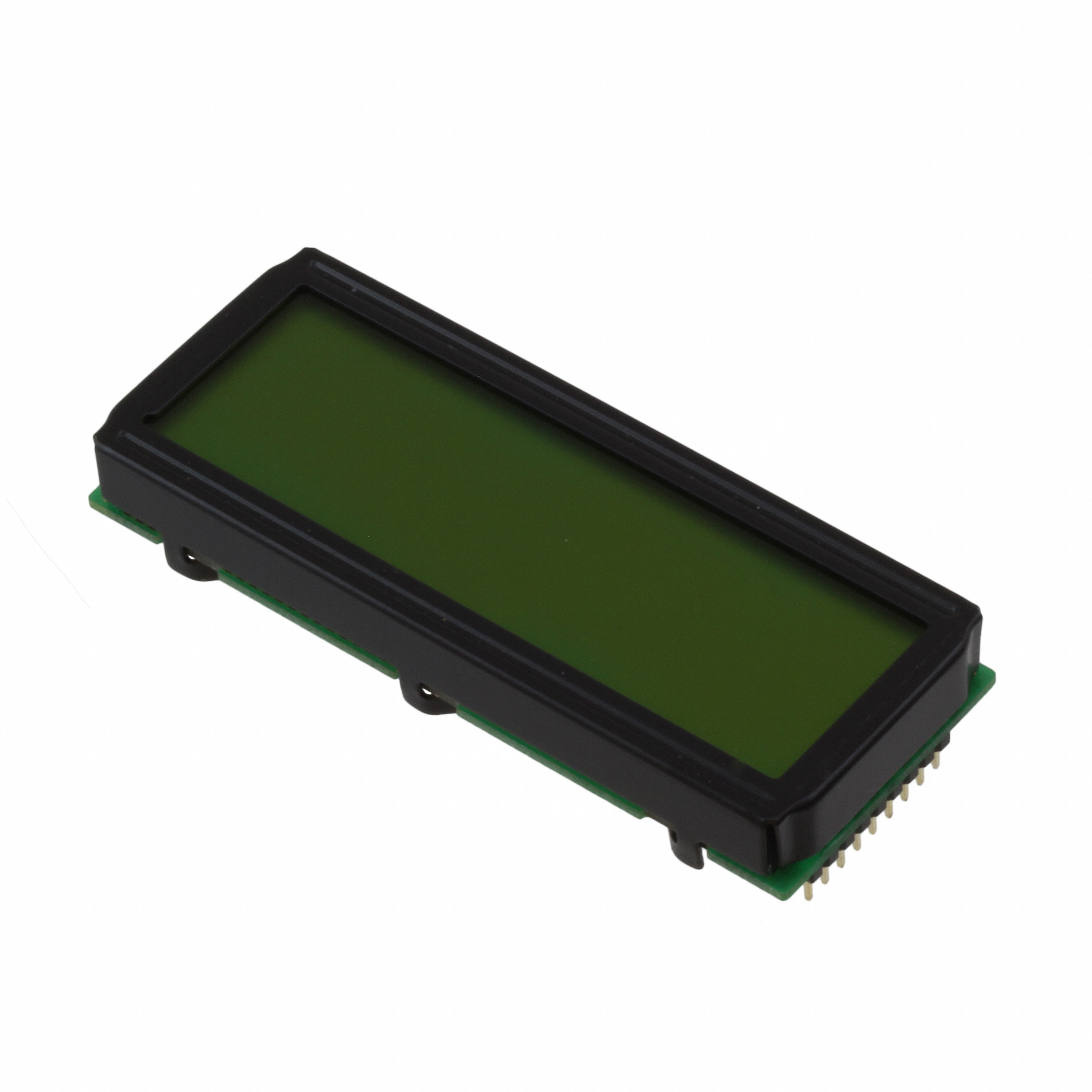

EA DIP162-DHNLED
ActiveDisplay Visions
LCD MOD 32DIG 16X2 TRANS YLW/GRN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EA DIP162-DHNLED |
|---|---|
| Background Color | Green |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [x] | 6.68 mm |
| Character Size [y] | 2.96 mm |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.56 mm |
| Dot Size [y] | 0.8 mm |
| Interface | Parallel, 8-Bit |
| Number of Characters | 32 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Text Color | Gray |
| Viewing Area [x] | 61 mm |
| Viewing Area [y] | 19 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 27.71 | |
| 20 | $ 21.17 | |||
| 100 | $ 19.17 | |||
| 500 | $ 17.81 | |||
Description
General part information
EADIP162 Series
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel, 8-Bit 66.00mm x 26.80mm x 10.80mm
