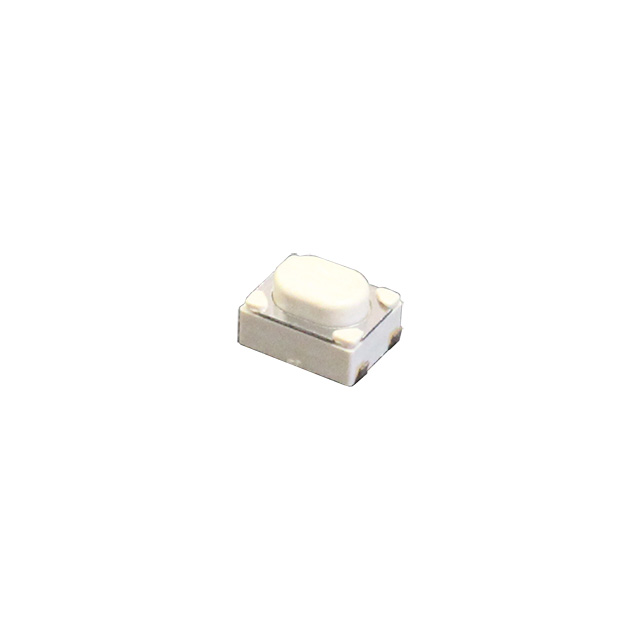

CS1215AJF160

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CS1215AJF160

Actuator Length, Right Angle [x]	2.5 mm
Actuator Material	Liquid Crystal Polymer (LCP)
Actuator Orientation	Top Actuated
Actuator Type	Oval Button
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	4.2 mm
Outline [y]	3.2 mm
Switch Function	Off-Mom
Termination Style	J Lead

Part	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Termination Style	Mounting Type	Circuit	Actuator Type	Actuator Length, Right Angle [x]	Switch Function	Contact Rating @ Voltage	Outline [y]	Outline [x]	Illumination
CIT Relay and Switch CS1215AJF160	Liquid Crystal Polymer (LCP)	85 °C	-40 °C	Top Actuated	J Lead	Surface Mount	SPST-NO	Oval Button	2.5 mm	Off-Mom	0.05 A 50 VDC	3.2 mm	4.2 mm	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
