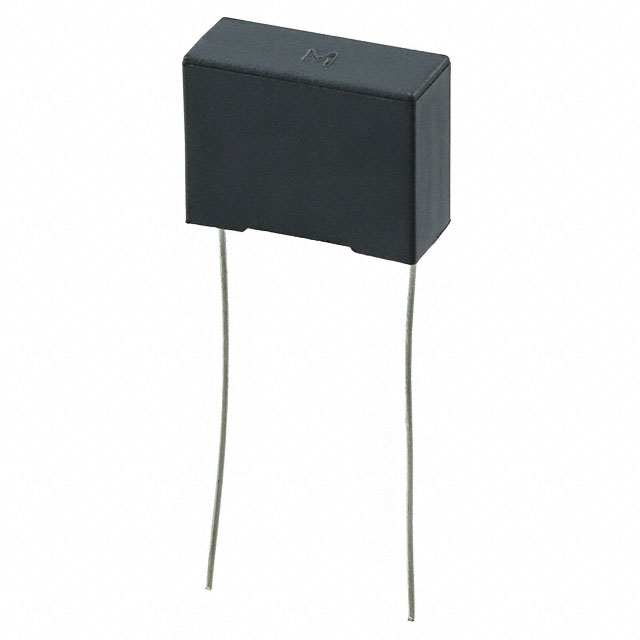

R49AI247000B1M

Active

KEMET

SUPPRESSION CAP, 47000PF, CLASS X1, 330V ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

SUPPRESSION CAP, 47000PF, CLASS X1, 330V ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R49AI247000B1M

Applications	EMI, RFI Suppression
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	0.437 in
Height - Seated (Max) [Max]	11.1 mm
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X1
Size / Dimension [x]	18 mm
Size / Dimension [x]	0.709 in
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	330 V
Voltage Rating - DC	800 V

Part	Ratings	Tolerance	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Capacitance	Applications	Dielectric Material	Voltage Rating - DC	Voltage Rating - AC	Mounting Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R49AI21005001K	X1	10 %	PC Pins	-40 °C	110 °C	37.5 mm	1.476 in	10000 pF	EMI RFI Suppression	Metallized Polypropylene (PP)	800 V	330 V	Through Hole	Radial
KEMET R49AI247000B1M	X1	20 %	PC Pins	-40 °C	110 °C	15 mm	0.591 in		EMI RFI Suppression	Metallized Polypropylene (PP)	800 V	330 V	Through Hole	Radial	18 mm	0.197 "	5 mm	0.709 in	0.437 in	11.1 mm
KEMET R49AI310050A2M	X1	20 %	PC Pins	-40 °C	110 °C	15 mm	0.591 in	100000 pF	EMI RFI Suppression	Metallized Polypropylene (PP)	800 V	330 V	Through Hole	Radial	18 mm	0.236 in	6 mm	0.709 in			0.693 "	17.6 mm
KEMET R49AI31005101K	X1	10 %	PC Pins	-40 °C	110 °C	15 mm	0.591 in	100000 pF	EMI RFI Suppression	Metallized Polypropylene (PP)	800 V	310 V	Through Hole	Radial	18 mm	0.335 in	8.5 mm	0.709 in	0.575 in	14.6 mm
KEMET R49AI31005001K	X1	10 %	PC Pins	-40 °C	110 °C	15 mm	0.591 in	100000 pF	EMI RFI Suppression	Metallized Polypropylene (PP)	800 V	310 V	Through Hole	Radial	18 mm	0.335 in	8.5 mm	0.709 in	0.575 in	14.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.047 µF Film Capacitor 330V 800V Polypropylene (PP), Metallized Radial
