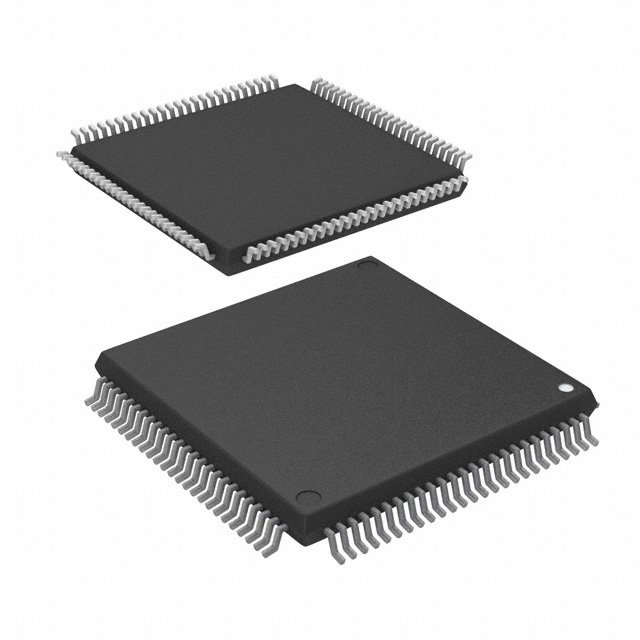

UPD70F3834GC(R)-UEU-AX

Obsolete

Renesas Electronics Corporation

IC MCU 32BIT 64KB FLASH 100LQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UPD70F3834GC(R)-UEU-AX

Obsolete

Renesas Electronics Corporation

IC MCU 32BIT 64KB FLASH 100LQFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UPD70F3834GC(R)-UEU-AX

Connectivity	UART/USART, CSI, USB, I2C, Ethernet, CANbus
Core Processor	V850ES
Core Size	32-Bit Single-Core
Data Converters [x]	10
Data Converters [y]	10 b
Mounting Type	Surface Mount
Number of I/O	62
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	100-LQFP
Peripherals	WDT, DMA, LVD, PWM
Program Memory Size	64 KB
Program Memory Type	FLASH
Speed	50 MHz
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	2.85 V

V850ES/Jx3-E Series

32-bit Microcontrollers

Part	Connectivity	Speed	Package / Case	Oscillator Type	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Core Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Data Converters [x]	Data Converters [y]	Peripherals	Number of I/O	Program Memory Type	Core Processor	Mounting Type	RAM Size
Renesas Electronics Corporation UPD70F3835GC(R)-UEU-AX	CANbus CSI Ethernet I2C UART/USART USB	50 MHz	100-LQFP	Internal	128 KB	85 °C	-40 °C	32-Bit Single-Core	3.6 V	2.85 V	10	10 b	DMA LVD PWM WDT	62	FLASH	V850ES	Surface Mount
Renesas Electronics Corporation UPD70F3783GF-GAT-AX	CANbus CSI EBI/EMI Ethernet I2C UART/USART USB	50 MHz	128-LQFP	Internal	512 KB	85 °C	-40 °C	32-Bit Single-Core	3.6 V	2.85 V	10	10 b	DMA LVD PWM WDT	84 I/O	FLASH	V850ES	Surface Mount	124 K
Renesas Electronics Corporation UPD70F3828GB(R)-GAH-AX	CANbus CSI Ethernet I2C UART/USART USB	50 MHz	64-LQFP	Internal	256 KB	85 °C	-40 °C	32-Bit Single-Core	3.6 V	2.85 V	10	10 b	DMA LVD PWM WDT	26 I/O	FLASH	V850ES	Surface Mount	64 K
Renesas Electronics Corporation UPD70F3834GC(R)-UEU-AX	CANbus CSI Ethernet I2C UART/USART USB	50 MHz	100-LQFP	Internal	64 KB	85 °C	-40 °C	32-Bit Single-Core	3.6 V	2.85 V	10	10 b	DMA LVD PWM WDT	62	FLASH	V850ES	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

V850ES/Jx3-E Series

The V850ES/Jx3-E are 32-bit single-chip microcontrollers that use the V850ES CPU core and incorporate peripheral functions such as ROM/RAM, a timer/counter, serial interfaces, an A/D converter, a D/A converter, a DMA controller, CAN, a USB function controller, and a built-in IEEE 802.3-compliant Ethernet controller.
