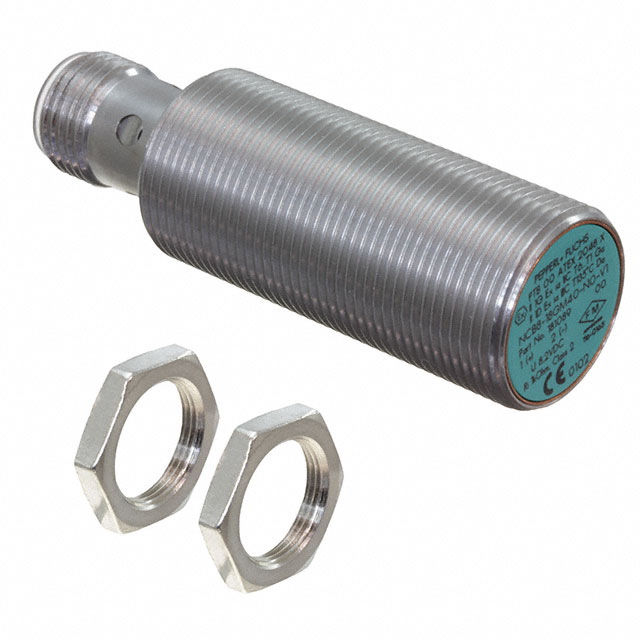

NCB8-18GM50-Z4-V1
ActivePEPPERL+FUCHS
INDUCTIVE SEN 8MM NO
Deep-Dive with AI
Search across all available documentation for this part.
NCB8-18GM50-Z4-V1
ActivePEPPERL+FUCHS
INDUCTIVE SEN 8MM NO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NCB8-18GM50-Z4-V1 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | SCR-NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 0.315 in |
| Sensing Distance | 8 mm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 137.15 | |
| 10 | $ 124.29 | |||
| 25 | $ 120.01 | |||
Description
General part information
NCB8-18 Series
INDUCTIVE SEN 8MM NO
Documents
Technical documentation and resources
No documents available
