SCMM2512S5-0M80F

Obsolete

Delta Electronics/Cyntec

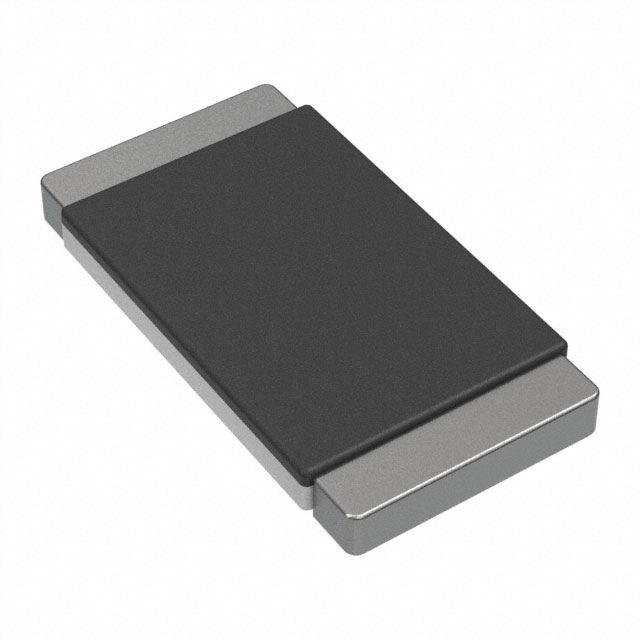

RES SMD 800 UOHM 1% 5W 2512

Search across all available documentation for this part.

Obsolete

Delta Electronics/Cyntec

RES SMD 800 UOHM 1% 5W 2512

Technical Specifications

Parameters and characteristics for this part

Specification	SCMM2512S5-0M80F

Composition	Metal Film
Features	Current Sense, Pulse Withstanding
Height - Seated (Max) [Max] [z]	0.85 mm
Height - Seated (Max) [Max] [z]	0.033 "
Number of Terminations	2
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-65 ░C
Package / Case	6432 Metric
Package / Case	2512
Power (Watts)	5 W
Resistance	0.8 mOhms
Size / Dimension	6.35 mm, 3.2 mm
Size / Dimension [x]	0.25 "
Size / Dimension [y]	0.126 "
Supplier Device Package	2512
Temperature Coefficient	75 ppm/°C
Tolerance	1 %

Part	Resistance	Package / Case	Package / Case	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Power (Watts)	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Number of Terminations	Tolerance	Supplier Device Package	Temperature Coefficient
Delta Electronics/Cyntec SCMM2512S5-0M50F	0.5 mOhms	6432 Metric	2512	Metal Film	0.85 mm	0.033 "	170 °C	-65 ░C	Current Sense Pulse Withstanding	5 W	0.25 "	3.2 mm 6.35 mm	0.126 "	2	1 %	2512	100 ppm/°C
Delta Electronics/Cyntec SCMM2512S5-R001F	1 mOhms	6432 Metric	2512	Metal Film	0.85 mm	0.033 "	170 °C	-65 ░C	Current Sense Pulse Withstanding	5 W	0.25 "	3.2 mm 6.35 mm	0.126 "	2	1 %	2512	50 ppm/°C
Delta Electronics/Cyntec SCMM2512S5-0M80F	0.8 mOhms	6432 Metric	2512	Metal Film	0.85 mm	0.033 "	170 °C	-65 ░C	Current Sense Pulse Withstanding	5 W	0.25 "	3.2 mm 6.35 mm	0.126 "	2	1 %	2512	75 ppm/°C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.8 mOhms ±1% 5W Chip Resistor 2512 (6432 Metric) Current Sense, Pulse Withstanding Metal Film
