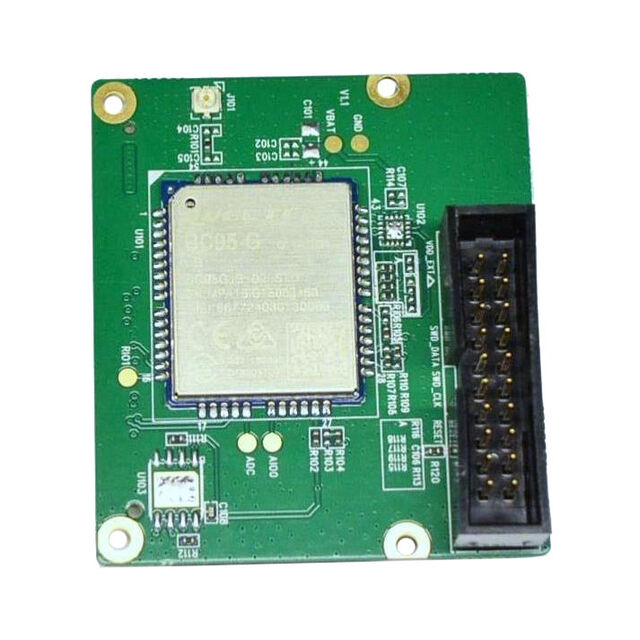

BC95GJB-02-STD

Obsolete

Quectel

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Obsolete

Quectel

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Sensitivity	Current - Receiving	Power - Output	Protocol	Data Rate	Serial Interfaces	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Current - Transmitting [Min]	Current - Transmitting [Max]	Antenna Type
Quectel BC95GVBA-I01-ATEX	-35 °C	75 ░C	Surface Mount	-129 dBm	60 mA	23 dBmW	GPRS GSM LTE	150 kbps	ADC UART	Module	4.2 V	3.1 V	Cellular	70 mA	280 mA
Quectel BC95GJB-02-STD	-35 °C	75 ░C	Surface Mount	-129 dBm	60 mA	23 dBmW	GPRS GSM LTE	150 kbps	ADC UART	Module	4.2 V	3.1 V	Cellular	70 mA	280 mA	Antenna Not Included
Quectel BC95GVBA-I01-SBK	-35 °C	75 ░C	Surface Mount	-129 dBm	60 mA	23 dBmW	GPRS GSM LTE	150 kbps	ADC UART	Module	4.2 V	3.1 V	Cellular	70 mA	280 mA
Quectel BC95GVBA-I01-CNASA	-35 °C	75 ░C	Surface Mount	-129 dBm	60 mA	23 dBmW	GPRS GSM LTE	150 kbps	ADC UART	Module	4.2 V	3.1 V	Cellular	70 mA	280 mA
Quectel BC95GJB-02-ATEX	-35 °C	75 ░C	Surface Mount	-129 dBm	60 mA	23 dBmW	GPRS GSM LTE	150 kbps	ADC UART	Module	4.2 V	3.1 V	Cellular	70 mA	280 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular GPRS, GSM, LTE Transceiver Module 700MHz, 800MHz, 850MHz, 900MHz, 1.8GHz, 2.1GHz Antenna Not Included Surface Mount

Technical documentation and resources

No documents available
