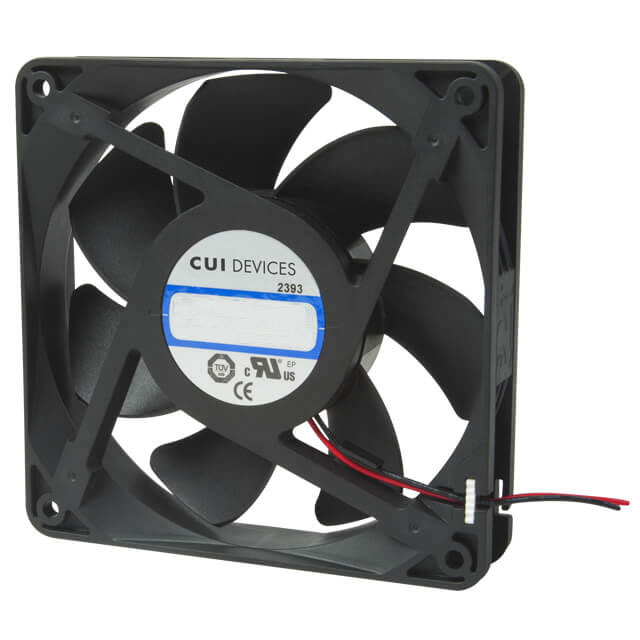

CFM-A238-43-11

Obsolete

CUI Devices

FAN AXIAL 120X38MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM-A238-43-11

Obsolete

CUI Devices

FAN AXIAL 120X38MM 48VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM-A238-43-11

Air Flow	200.9 CFM
Air Flow	5.63 mł/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	360 mA
Fan Type	Tubeaxial
Features	Locked Rotor Sensor, Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	61.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	23.04 W
RPM	4600 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	194.3 Pa
Static Pressure	0.78 in H2O
Termination	3 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	55.2 VDC
Voltage Range [Min]	30 VDC
Weight	0.624 lb
Weight	283.04 g
Width [y]	38 mm

CFM-A238 Series

Part	Noise	Current Rating (Amps)	Power (Watts)	Static Pressure	Static Pressure	Lifetime @ Temp.	Approval Agency	Weight	Weight	Termination	Width [y]	RPM	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Features	Voltage - Rated	Air Flow	Air Flow	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Voltage - Rated [custom]	Air Flow
CUI Devices CFM-A238V-221-370	37 dB	150 mA	3.59 W	44.8 Pa	0.18 in H2O	70000 Hrs	CE cURus TUV	218.18 g	0.481 lb	2 Wire Leads	38 mm	2100 RPM	70 °C	70 °C	-10 °C	-10 °C	120 mm	120 mm	Tubeaxial	Auto Restart	24 VDC	93 CFM	2.6 m³/min	Polybutylene Terephthalate (PBT)	10 VDC	27.6 VDC
CUI Devices CFM-A238V-221-370-11	37 dB	150 mA	3.59 W	44.8 Pa	0.18 in H2O	70000 Hrs	CE cURus TUV	218.18 g	0.481 lb	3 Wire Leads	38 mm	2100 RPM	70 °C	70 °C	-10 °C	-10 °C	120 mm	120 mm	Tubeaxial	Auto Restart	24 VDC	93 CFM	2.6 m³/min	Polybutylene Terephthalate (PBT)	10 VDC	27.6 VDC
CUI Devices CFM-A238V-121-370	37 dB	0.277 A	3.33 W	44.8 Pa	0.18 in H2O	70000 Hrs	CE cURus TUV	218.18 g	0.481 lb	2 Wire Leads	38 mm	2100 RPM	70 °C	70 °C	-10 °C	-10 °C	120 mm	120 mm	Tubeaxial	Auto Restart	12 VDC	93 CFM	2.6 m³/min	Polybutylene Terephthalate (PBT)	6 VDC	13.8 VDC
CUI Devices CFM-A238-13-10	61.5 dB(A)	1.4 A	21 W	194.3 Pa	0.78 in H2O	70000 Hrs	CE cURus TUV	297.56 g	0.656 lb	2 Wire Leads	38 mm	4600 RPM	70 °C	70 °C	-10 °C	-10 °C	120 mm	120 mm	Tubeaxial	Auto Restart	12 VDC	200.9 CFM	5.63 mł/min	Polybutylene Terephthalate (PBT)	6 VDC	13.8 VDC	Ball
CUI Devices CFM-A238-13-20	61.5 dB(A)	1.4 A	21 W	194.3 Pa	0.78 in H2O	70000 Hrs	CE cURus TUV	297.56 g	0.656 lb	3 Wire Leads	38 mm	4600 RPM	70 °C	70 °C	-10 °C	-10 °C	120 mm	120 mm	Tubeaxial	Auto Restart Speed Sensor (Tach)	12 VDC	200.9 CFM	5.63 mł/min	Polybutylene Terephthalate (PBT)	6 VDC	13.8 VDC	Ball
CUI Devices CFM-A238-43-11	61.5 dB(A)	360 mA	23.04 W	194.3 Pa	0.78 in H2O	70000 Hrs	CE cURus TUV	283.04 g	0.624 lb	3 Wire Leads	38 mm	4600 RPM	70 °C	70 °C	-10 °C	-10 °C	120 mm	120 mm	Tubeaxial	Auto Restart Locked Rotor Sensor		200.9 CFM	5.63 mł/min	Polybutylene Terephthalate (PBT)	30 VDC	55.2 VDC	Ball	48 VDC
CUI Devices CFM-A238V-231-480-11	48 dB	0.44 A	10.57 W	89.7 Pa	0.36 in H2O	70000 Hrs	CE cURus TUV	218.18 g	0.481 lb	3 Wire Leads	38 mm	3100 RPM	70 °C	70 °C	-10 °C	-10 °C	120 mm	120 mm	Tubeaxial	Auto Restart	24 VDC	138 CFM	3.86 m³/min	Polybutylene Terephthalate (PBT)	10 VDC	27.6 VDC
CUI Devices CFM-A238V-131-480-11	48 dB	0.958 A	11.5 W	89.7 Pa	0.36 in H2O	70000 Hrs	CE cURus TUV	218.18 g	0.481 lb	3 Wire Leads	38 mm	3100 RPM	70 °C	70 °C	-10 °C	-10 °C	120 mm	120 mm	Tubeaxial	Auto Restart	12 VDC			Polybutylene Terephthalate (PBT)	6 VDC	13.8 VDC
CUI Devices CFM-A238V-231-480-20	48 dB	0.44 A	10.57 W	89.7 Pa	0.36 in H2O	70000 Hrs	CE cURus TUV	218.18 g	0.481 lb	3 Wire Leads	38 mm	3100 RPM	70 °C	70 °C	-10 °C	-10 °C	120 mm	120 mm	Tubeaxial	Auto Restart Speed Sensor (Tach)	24 VDC	138 CFM	3.86 m³/min	Polybutylene Terephthalate (PBT)	10 VDC	27.6 VDC
CUI Devices CFM-A238V-126-440	44 dB	484 mA	5.81 W	64.8 Pa	0.26 in H2O	70000 Hrs	CE cURus TUV	218.18 g	0.481 lb	2 Wire Leads	38 mm	2600 RPM	70 °C	70 °C	-10 °C	-10 °C	120 mm	120 mm	Tubeaxial	Auto Restart	12 VDC		116 CFM	Polybutylene Terephthalate (PBT)	6 VDC	13.8 VDC			3.25 mł/min

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CFM-A238 Series

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 200.9 CFM (5.63mł/min) 3 Wire Leads
