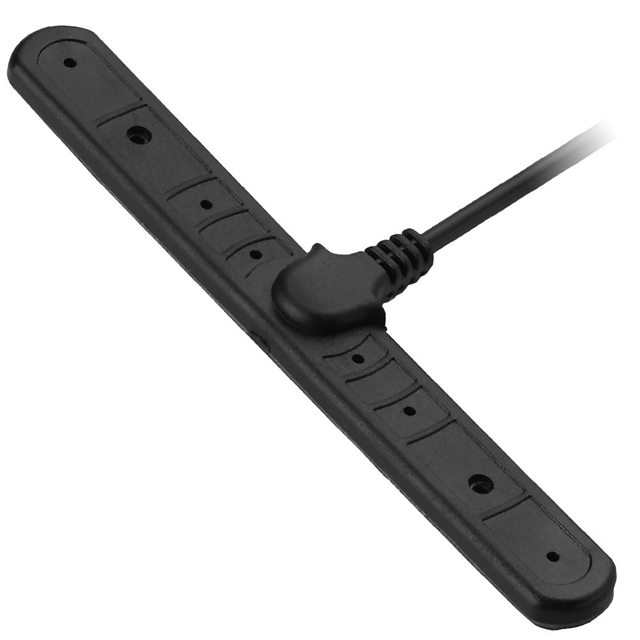

GSA.8822.B.301111

Active

TAOGLAS

RF ANTENNA, 2.49 TO 2.69GHZ, T-BAR, -7.12DBI, 50 OHM, LINEAR

Search across all available documentation for this part.

Active

TAOGLAS

RF ANTENNA, 2.49 TO 2.69GHZ, T-BAR, -7.12DBI, 50 OHM, LINEAR

Technical Specifications

Parameters and characteristics for this part

Specification	GSA.8822.B.301111

Antenna Type	Flat Bar
Applications	LTE, GSM, UMTS, 2G, 3G, 4G, PCS, DCS, CDMA, WLAN
Features	Cable
Features	3 m
Frequency (Center/Band)	2.045 GHz, 1.795 GHz, 920 MHz, 1.92 GHz, 2.59 GHz, 750.5 MHz, 859 MHz
Frequency Group	Wide Band
Frequency Range [Max]	960 MHz, 2.7 GHz
Frequency Range [Min]	698 MHz, 1.71 GHz
Gain	1.27 dBi, 2.53 dBi, 1.43 dBi, -1.34 dBi, 2.7 dBi
Height (Max) [Max]	0.264 in
Height (Max) [Max]	6.7 mm
Ingress Protection	IP67
Mounting Type	Adhesive
Number of Bands	7
Power - Max [Max]	5 W
Return Loss	-10 dB
RF Family/Standard	Cellular
VSWR	2

Part	VSWR	Mounting Type	Number of Bands	Height (Max) [Max]	Height (Max) [Max]	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	Gain	Frequency Group	RF Family/Standard	Applications	Antenna Type	Ingress Protection	Power - Max [Max]	Return Loss	Features	Features
TAOGLAS GSA.8822.B.301111	2	Adhesive	7	0.264 in	6.7 mm	1.795 GHz 1.92 GHz 2.045 GHz 2.59 GHz 750.5 MHz 859 MHz 920 MHz	2.7 GHz 960 MHz	1.71 GHz 698 MHz	-1.34 dBi 1.27 dBi 1.43 dBi 2.53 dBi 2.7 dBi	Wide Band	Cellular	2G 3G 4G CDMA DCS GSM LTE PCS UMTS WLAN	Flat Bar	IP67	5 W	-10 dB	Cable	3 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 2G, 3G, 4G, CDMA, DCS, GSM, LTE, PCS, UMTS, WLAN Flat Bar SMA Male Adhesive
