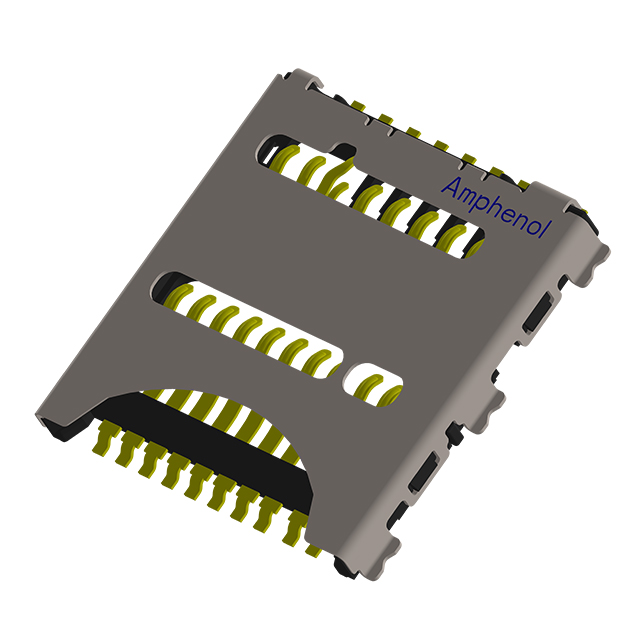

1010170469#2A
ActiveAmphenol ICC (Commercial Products)
CONN UFS & MICRO SD PUSH-PULL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1010170469#2A
ActiveAmphenol ICC (Commercial Products)
CONN UFS & MICRO SD PUSH-PULL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1010170469#2A |
|---|---|
| Card Type | microSD™, UFS |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Height Above Board [z] | 0.061 " |
| Height Above Board [z] | 1.55 mm |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 19 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.31 | |
| 10 | $ 3.00 | |||
| 25 | $ 2.84 | |||
| 50 | $ 2.78 | |||
| 100 | $ 2.64 | |||
| 250 | $ 2.31 | |||
| 500 | $ 2.25 | |||
| Digi-Reel® | 1 | $ 3.31 | ||
| 10 | $ 3.00 | |||
| 25 | $ 2.84 | |||
| 50 | $ 2.78 | |||
| 100 | $ 2.64 | |||
| 250 | $ 2.31 | |||
| 500 | $ 2.25 | |||
| Tape & Reel (TR) | 1200 | $ 0.98 | ||
Description
General part information
10101704 Series
19 Position Card Connector microSD™, UFS Surface Mount, Right Angle Gold
