09700062615

Active

HARTING Technology Group

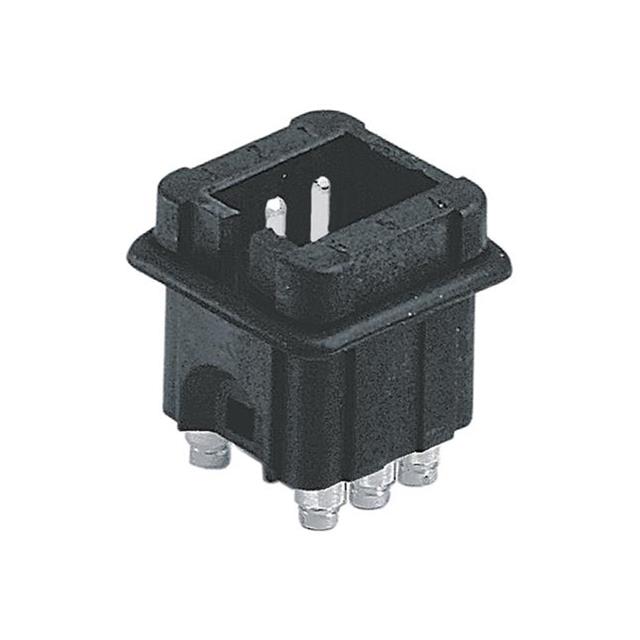

STAF 06 POS. M INSERT SOLDER ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

STAF 06 POS. M INSERT SOLDER ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09700062615

Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 HB
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Termination Style	Solder
Voltage Rating	50 V

Part	Termination Style	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Housing Material	Contact Material	Contact Finish	Size	Material Flammability Rating	Voltage Rating	Current Rating (Amps)
HARTING Technology Group 09700062615	Solder	Male	100 °C	-40 °C	6	Polyamide (PA) Nylon	Copper Alloy	Silver	3 A	UL94 HB	50 V	10 A
HARTING Technology Group 09700062616	Screw	Male	100 °C	-40 °C	6	Polyamide (PA) Nylon	Copper Alloy	Silver	3 A	UL94 HB	50 V	10 A
HARTING Technology Group 09700062813	Screw	Female	100 °C	-40 °C	6	Polyamide (PA) Nylon	Copper Alloy	Silver	3 A	UL94 HB	50 V	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert 6 Position Solder
