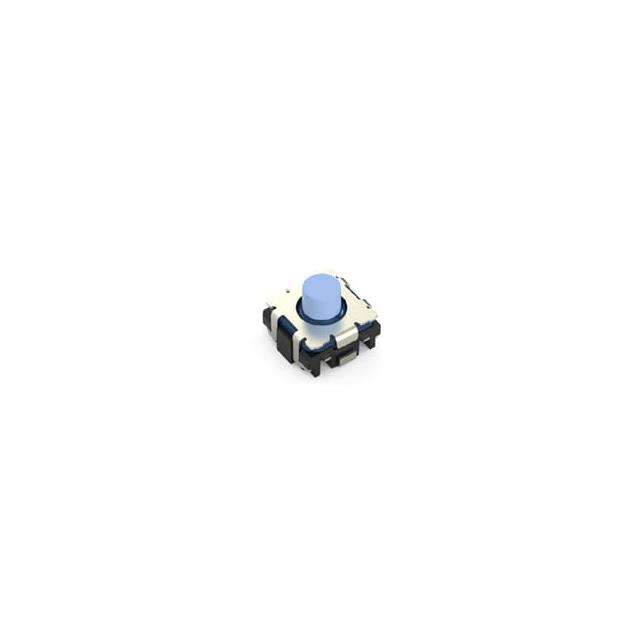

SKTQAAE010
ActiveAlps Alpine
SWITCH TACTILE N.O. SPST ROUND BUTTON J-LEAD 0.05A 16VDC 5N SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKTQAAE010
ActiveAlps Alpine
SWITCH TACTILE N.O. SPST ROUND BUTTON J-LEAD 0.05A 16VDC 5N SMD T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKTQAAE010 |
|---|---|
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 16 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 510 gf |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 5.4 mm |
| Outline [y] | 5.3 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.71 mm |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 5 | $ 0.79 | |
| 50 | $ 0.71 | |||
| 100 | $ 0.61 | |||
| 200 | $ 0.61 | |||
| 500 | $ 0.52 | |||
| Digikey | Cut Tape (CT) | 1 | $ 0.82 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.74 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.50 | |||
| Digi-Reel® | 1 | $ 0.82 | ||
| 10 | $ 0.79 | |||
| 25 | $ 0.74 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.50 | |||
| Tape & Reel (TR) | 2200 | $ 0.50 | ||
| 4400 | $ 0.45 | |||
| 6600 | $ 0.42 | |||
| 11000 | $ 0.39 | |||
Description
General part information
SKTQA Series
Tactile Switch SPST-NO Top Actuated Surface Mount
