RSL1GB4ED

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 1 CO,48VAC/VDC 6A LOW LEVE

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 1 CO,48VAC/VDC 6A LOW LEVE

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Approval Agency	Contact Form	Contact Rating (Current)	Release Time	Relay Type	Switching Voltage [Max]	Coil Resistance	Coil Current	Coil Type	Coil Voltage	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Load - Max Switching [Max]	Must Release Voltage	Must Operate Voltage	Contact Material
SQUARE D BY SCHNEIDER ELECTRIC RSL1GB4ND	PC Pin	CSA EAC UL	SPDT (1 Form C)	6 A	5 ms	General Purpose	277 VAC	16.6 kOhms	3.6 mA	Non Latching	60 VDC	12 ms	-40 °C	55 °C	Through Hole	1662 VA	3 VDC	45 VDC	Gold (Au) Silver (Ag)
SQUARE D BY SCHNEIDER ELECTRIC RSL1GB4ED	PC Pin	CSA EAC UL	SPDT (1 Form C)	6 A	5 ms	General Purpose	277 VAC	10.6 kOhms	4.5 mA	Non Latching	48 VDC	12 ms	-40 °C	55 °C	Socketable	1662 VA	2.4 VDC	36 VDC	Silver Tin Oxide (AgSnO)
SQUARE D BY SCHNEIDER ELECTRIC RSL1GB4BD	PC Pin	CSA EAC UL	SPDT (1 Form C)	6 A	5 ms	General Purpose	277 VAC	3.39 kOhms	7.1 mA	Non Latching	24 VDC	12 ms	-40 °C	55 °C	Through Hole	1662 VA	1.2 VDC	18 VDC	Silver Tin Oxide (AgSnO)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.49

General part information

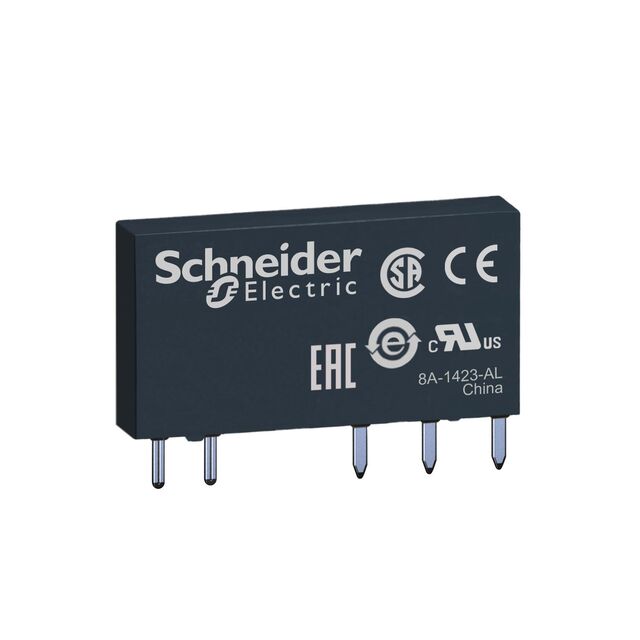

General Purpose Relay SPDT (1 Form C) 48VDC Coil Socketable
