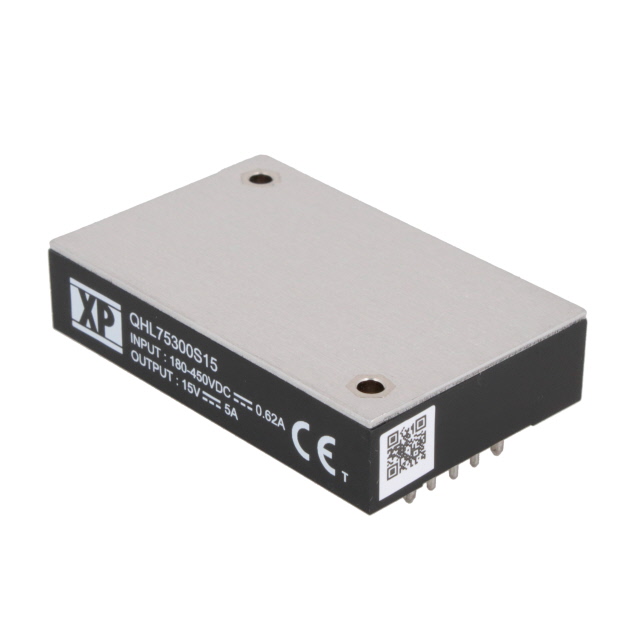

QHL75300S15

Active

XP POWER

DC-DC 75W BASEPLATE COOLED

Search across all available documentation for this part.

Active

XP POWER

DC-DC 75W BASEPLATE COOLED

Technical Specifications

Parameters and characteristics for this part

Specification	QHL75300S15

Applications	ITE (Commercial)
Approval Agency	CE
Control Features	Enable, Active Floating
Current - Output (Max) [Max]	5 A
Efficiency	90 %
Features	Standby Output, Remote On/Off, Baseplate
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	75 W
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Standard Number	62368-1
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	450 V
Voltage - Input (Min) [Min]	180 V
Voltage - Isolation	4.2 kV
Voltage - Output 1	15 V

Part	Voltage - Output 1	Supplier Device Package	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Standard Number	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Approval Agency	Type	Control Features	Power (Watts)	Efficiency
XP POWER QHL75300S05	5 V	Quarter Brick	1	180 V	4.2 kV	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Quarter Brick	62368-1	ITE (Commercial)	-40 °C	105 C	Baseplate Remote On/Off Standby Output	Through Hole	450 V	15 A	CE	Isolated Module	Active Floating Enable	75 W
XP POWER QHL75300S12	12 V	Quarter Brick	1	180 V	4.2 kV	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Quarter Brick	62368-1	ITE (Commercial)	-40 °C	105 C	Baseplate Remote On/Off Standby Output	Through Hole	450 V	6.25 A	CE	Isolated Module	Active Floating Enable	75 W	88 %
XP POWER QHL75300S15	15 V	Quarter Brick	1	180 V	4.2 kV	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Quarter Brick	62368-1	ITE (Commercial)	-40 °C	105 C	Baseplate Remote On/Off Standby Output	Through Hole	450 V	5 A	CE	Isolated Module	Active Floating Enable	75 W	90 %
XP POWER QHL75300S48	48 V	Quarter Brick	1	180 V	4.2 kV	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Quarter Brick	62368-1	ITE (Commercial)	-40 °C	105 C	Baseplate Remote On/Off Standby Output	Through Hole	450 V	1.56 A	CE	Isolated Module	Active Floating Enable	75 W	89 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 15V 5A 180V - 450V Input
