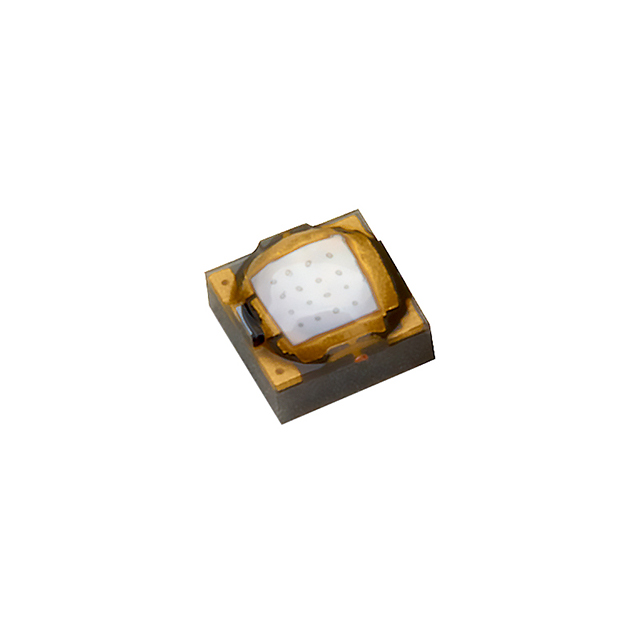

L1SP-RYL0002000000

Active

Lumileds

LED UNI-COLOR BLUE 455NM CHIP LED 2-PIN SMD T/R

Search across all available documentation for this part.

Active

Lumileds

LED UNI-COLOR BLUE 455NM CHIP LED 2-PIN SMD T/R

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Color	Viewing Angle	Mounting Type	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Temperature - Test	Current - Test	Height - Seated (Max)	Height - Seated (Max)	Wavelength [Min]	Wavelength [Max]	Thermal Resistance of Package [diameter]	Height - Seated (Max) [Max]	Wavelength
Lumileds L1SP-DRD0203E00000	2.07 V	1.4 A	3.45 mm	0.136 in	0.136 in	3.45 mm	3535 Metric	1414	Red	126 °	Surface Mount	1414	2.39 mm	0.094 "
Lumileds L1SP-FRD0002F00000	1.9 V	1.05 A		2 mm	2 mm			2-SMD No Lead	Red	122 °	Surface Mount				0.079 in	0.079 in	85 °C	350 mA	0.073 in	1.85 mm
Lumileds L1SP-FRD0002800000	2.15 V	250 mA		2.8 mm	3.5 mm		3528 Metric	1411	Red	130 °	Surface Mount	2835	0.75 mm	0.03 in	0.11 in	0.138 "		120 mA			720 nm	740 nm	15 °C/W
Lumileds L1SP-RYL0002000000	2.75 V	1.05 A		2 mm	2 mm		0707 1919 Metric		Blue	165 °	Surface Mount	SMD		0.059 "	0.079 in	0.079 in	85 °C	350 mA						1.5 mm	450 nm
Lumileds L1SP-FRD00035R0000	1.75 V	180 mA		3.4 mm	3.5 mm			2-SMD Flat Leads	Red	115 °	Surface Mount	2-SMD	0.8 mm	0.031 "	0.134 in	0.138 "		100 mA
Lumileds L1SP-DRD0002F00000	2.05 V	1.05 A		2 mm	2 mm			2-SMD No Lead	Red	122 °	Surface Mount				0.079 in	0.079 in	85 °C	350 mA	0.073 in	1.85 mm
Lumileds L1SP-FRD0002000000	1.9 V	1.05 A		2 mm	2 mm			3-SMD No Lead	Red	162 °	Surface Mount			0.059 "	0.079 in	0.079 in	85 °C	350 mA						1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color LUXEON SunPlus 20 Horticulture Blue 450nm (Typ) 0707 (1919 Metric)
