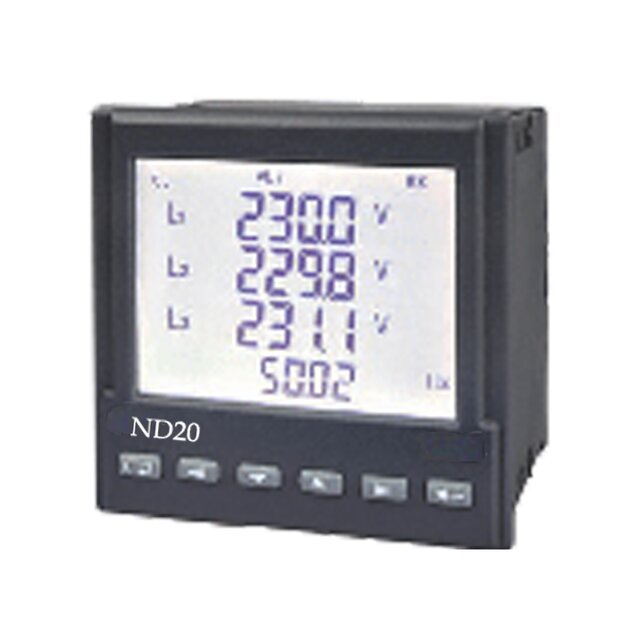

ND20 231200U1
ActiveSifam Tinsley Instrumentation Inc
AMMETER 5A LCD PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ND20 231200U1
ActiveSifam Tinsley Instrumentation Inc
AMMETER 5A LCD PANEL MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ND20 231200U1 |
|---|---|
| Display Characters - Height [z] | 9 mm |
| Display Characters - Height [z] | 0.354 " |
| Display Type | LCD - Black Characters, Backlight |
| Features | Pulse Meter |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Measuring Range | 5 A |
| Measuring Type | Current (3-Phase), Wattage, Voltage |
| Number of Characters Per Row | 4 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | Relay, Analog |
| Panel Cutout Dimensions [x] | 92.8 mm |
| Panel Cutout Dimensions [y] | 92.8 mm |
| Termination Style | Plug In Screw Terminals |
| Type | Multifunction Meter (Current, Voltage, Frequency, Power) |
| Voltage - Supply [Max] | 40 VAC, 60 V |
| Voltage - Supply [Min] | 20 VDC, 20 VAC |
| Weight | 300.28 g |
| Weight | 0.662 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 250.00 | |
Description
General part information
ND20 231200 Series
Multifunction Meter (Current, Voltage, Frequency, Power) LCD - Black Characters, Backlight Display Panel Mount
