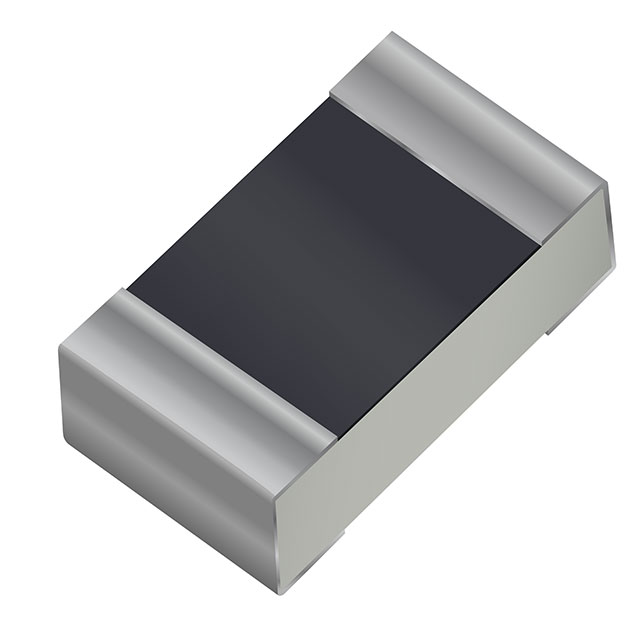

1001312
ActiveKyocera AVX
RF ANT 2.4GHZ CHIP SOLDER SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1001312
ActiveKyocera AVX
RF ANT 2.4GHZ CHIP SOLDER SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1001312 |
|---|---|
| Antenna Type | Chip |
| Applications | WLAN, Bluetooth, Wi-Fi, Zigbee™ |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 1.72 dBi |
| Height (Max) | 0.55 mm |
| Height (Max) [Max] | 0.022 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Solder |
| VSWR | 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.85 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.70 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.36 | |||
| 2500 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.85 | ||
| 10 | $ 0.75 | |||
| 25 | $ 0.70 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.36 | |||
| 2500 | $ 0.33 | |||
| Tape & Reel (TR) | 5000 | $ 0.31 | ||
| 10000 | $ 0.29 | |||
| 25000 | $ 0.28 | |||
Description
General part information
1001312 Series
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Chip Solder Surface Mount
Documents
Technical documentation and resources
