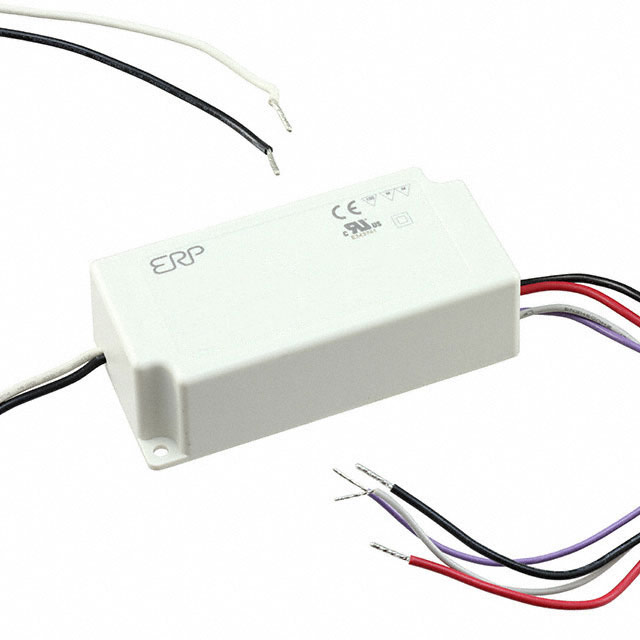

ESS020W-0350-56

Active

ERP Power, LLC

LED DRIVER CC AC/DC 40-56V 350MA

Deep-Dive with AI

Search across all available documentation for this part.

ESS020W-0350-56

Active

ERP Power, LLC

LED DRIVER CC AC/DC 40-56V 350MA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESS020W-0350-56

Approval Agency	CB, cUL, FC, UL, CE, cRUcs
Current - Output (Max) [Max]	350 mA
Dimming	ELV, Analog, TRIAC
Efficiency	87 %
Features	OTP, SCP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Power (Watts)	20 W
Ratings	IP64, NEMA 410
Size / Dimension [x]	3.3 "
Size / Dimension [x]	83.8 mm
Size / Dimension [y]	1.57 "
Size / Dimension [y]	39.9 mm
Size / Dimension [z]	25.1 mm
Size / Dimension [z]	0.99 "
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	277 VAC
Voltage - Input (Min) [Min]	120 VAC
Voltage - Output [Max]	56 V
Voltage - Output [Min]	40 VDC
Weight	154 g
Weight	0.34 lb

ESS020W Series

Part	Dimming	Number of Outputs	Efficiency	Mounting Type	Power (Watts)	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Min) [Min]	Termination Style	Topology	Features	Voltage - Input (Max) [Max]	Type	Ratings	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Operating Temperature
ERP Power, LLC ESS020W-0500-32	Analog ELV TRIAC	1	87 %	Chassis Mount	16 W	21 V	32 VDC	120 VAC	Wire Leads	AC DC Converter	OCP OTP SCP	277 VAC	Constant Current	IP64	CB CCC CE cRUcs CSA ENEC FC KC NEMKO SA UL	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	500 mA
ERP Power, LLC ESS020W-0500-34	Analog ELV TRIAC	1	87 %	Chassis Mount	17 W	24 V	34 V	120 VAC	Wire Leads	AC DC Converter	OCP OTP SCP	277 VAC	Constant Current	IP64	CE cURus	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	500 mA	70 °C	-30 ░C
ERP Power, LLC ESS020W-0700-24	Analog ELV TRIAC	1	87 %	Chassis Mount	17 W	14 V	24 V	120 VAC	Wire Leads	AC DC Converter	OCP OTP SCP	277 VAC	Constant Current	IP64	CB CCC CE cRUcs CSA ENEC FC KC NEMKO SA UL	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	700 mA
ERP Power, LLC ESS020W-0450-42	Analog ELV TRIAC	1	87 %	Chassis Mount	19 W	28 V	42 V	120 VAC	Wire Leads	AC DC Converter	OCP OTP SCP	277 VAC	Constant Current	IP64	CB CCC CE cRUcs CSA ENEC FC KC NEMKO SA UL	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	450 mA
ERP Power, LLC ESS020W-0400-42	Analog ELV TRIAC	1	87 %	Chassis Mount	17 W	28 V	42 V	120 VAC	Wire Leads	AC DC Converter	OCP OTP SCP	277 VAC	Constant Current	IP64	CB CCC CE cRUcs CSA ENEC FC KC NEMKO SA UL	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	400 mA
ERP Power, LLC ESS020W-0350-56	Analog ELV TRIAC	1	87 %	Chassis Mount	20 W	40 VDC	56 V	120 VAC	Wire Leads	AC DC Converter	OCP OTP SCP	277 VAC	Constant Current	IP64 NEMA 410	CB CE cRUcs cUL FC UL	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	350 mA	90 °C	-30 ░C	154 g	0.34 lb
ERP Power, LLC ESS020W-1400-14-Z1	Analog ELV TRIAC	1	87 %	Chassis Mount	20 W	8 V	14 V	120 VAC	Wire Leads	AC DC Converter	OCP OTP SCP	277 VAC	Constant Current	IP64	CE cURus	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	1.4 A					194 °F
ERP Power, LLC ESS020W-1400-14	Analog ELV TRIAC	1	87 %	Chassis Mount	20 W	8 V	14 V	120 VAC	Wire Leads	AC DC Converter	OCP OTP SCP	277 VAC	Constant Current	IP64	CB CCC CE cRUcs CSA ENEC FC KC NEMKO SA UL	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	1.4 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 26.92
		5	$ 25.51
		10	$ 24.09
		25	$ 23.03
		50	$ 21.96
		100	$ 21.26
		250	$ 19.48
		500	$ 19.13

Description

General part information

ESS020W Series

350mA 40 ~ 56V Constant Current LED Driver AC DC Converter Topology 1 Output
