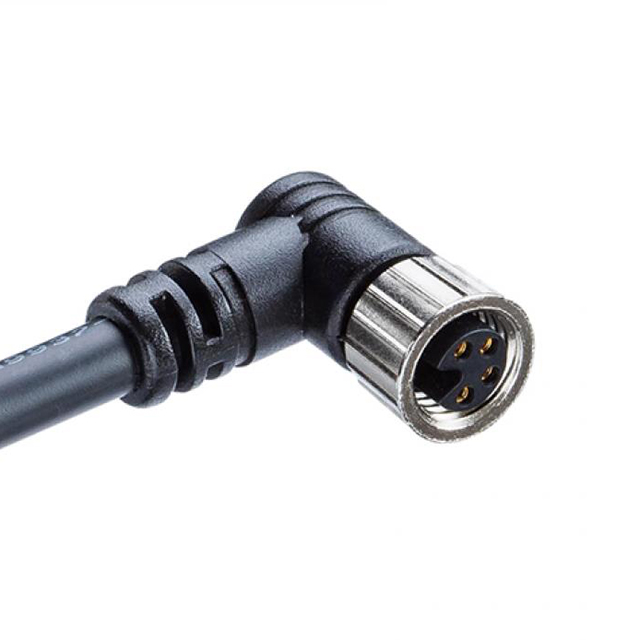

8A-02AFFM-SR7A02

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, GUIDED M8, METAL, 3A, 02 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8A-02AFFM-SR7A02

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, GUIDED M8, METAL, 3A, 02 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8A-02AFFM-SR7A02

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	2
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M8
1st Connector Type	Receptacle, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	2 m
Length [x]	6.56 ft
Shielding	Unshielded
Usage	Industrial Environments

8A-02AFFM Series

Part	1st Connector Number of Positions Loaded	1st Connector Orientation [custom]	Assembly Configuration	Usage	1st Connector Shell Size - Insert	2nd Connector Type	Color	Cable Material	1st Connector Mounting Type	Cable Type	1st Connector Gender	Ingress Protection	Length [x]	Length [x]	1st Connector Number of Positions	1st Connector Type	Shielding
Amphenol LTW 8A-02AFFM-SL7A02	All	Keyed	Standard	Industrial Environments	M8	Wire Leads	Black	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Female Sockets	IP67 - Dust Tight Waterproof	2 m	6.56 ft	2	Receptacle	Unshielded
Amphenol LTW 8A-02AFFM-SL7A01	All	Keyed	Standard	Industrial Environments	M8	Wire Leads	Black	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Female Sockets	IP67 - Dust Tight Waterproof	1 m	3.28 ft	2	Receptacle	Unshielded
Amphenol LTW 8A-02AFFM-SR7A02	All	Keyed	Standard	Industrial Environments	M8	Wire Leads	Black	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Female Sockets	IP67 - Dust Tight Waterproof	2 m	6.56 ft	2	Receptacle Right Angle	Unshielded
Amphenol LTW 8A-02AFFM-SR7A03	All	Keyed	Standard	Industrial Environments	M8	Wire Leads	Black	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Female Sockets	IP67 - Dust Tight Waterproof	3 m	9.84 ft	2	Receptacle Right Angle	Unshielded
Amphenol LTW 8A-02AFFM-SR7A01	All	Keyed	Standard	Industrial Environments	M8	Wire Leads	Black	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Female Sockets	IP67 - Dust Tight Waterproof	1 m	3.28 ft	2	Receptacle Right Angle	Unshielded
Amphenol LTW 8A-02AFFM-SR7A10	All	Keyed	Standard	Industrial Environments	M8	Wire Leads	Black	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Female Sockets	IP67 - Dust Tight Waterproof			2	Receptacle Right Angle	Unshielded
Amphenol LTW 8A-02AFFM-SL7A03	All	Keyed	Standard	Industrial Environments	M8	Wire Leads	Black	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Round	Female Sockets	IP67 - Dust Tight Waterproof	3 m	9.84 ft	2	Receptacle	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.94
		10	$ 8.05
		30	$ 7.58
		50	$ 7.39
		100	$ 7.19
		250	$ 6.42
		500	$ 6.03
		1000	$ 5.33
Newark	Each	10	$ 7.70
		25	$ 7.01
		50	$ 6.57
		100	$ 6.31
		250	$ 5.76

Description

General part information

8A-02AFFM Series

Circular Cable Assembly Unshielded 6.56' (2.00m)
