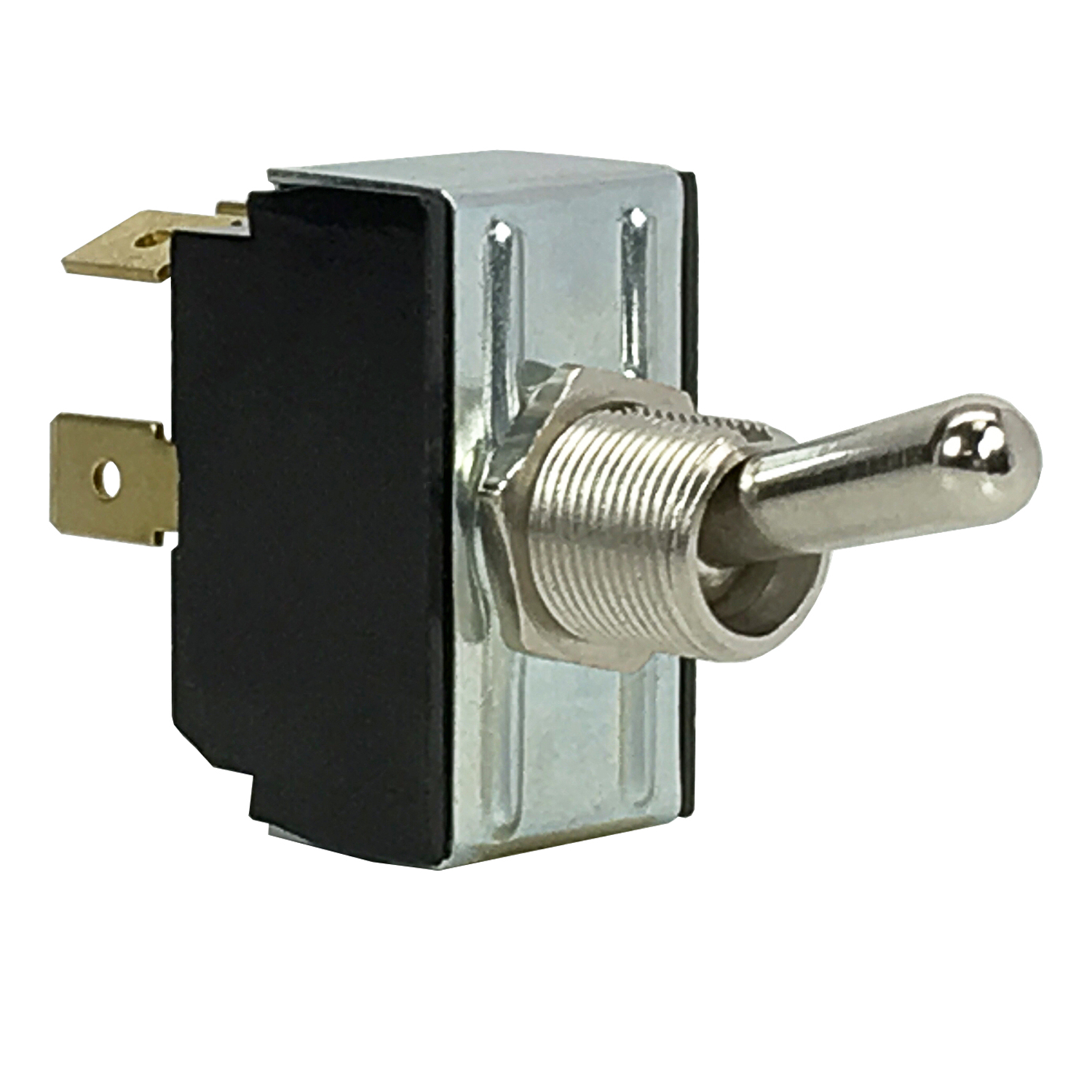

2GK01-73

Active

Carling Technologies

SWITCH TOGGLE DPST 20A 250V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH TOGGLE DPST 20A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	2GK01-73

Actuator Length [x]	17.45 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPST
Current Rating (Amps)	20 A
Electrical Life	50000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V

Part	Switch Function	Actuator Type	Actuator Length [x]	Circuit	Bushing Thread	Termination Style	Electrical Life	Voltage Rating - AC	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Illumination
Carling Technologies 2GK01-73/2 HEX	On-Off	Standard Round	17.45 mm	DPST	15/32-32	Quick Connect - 0.250" (6.3mm)	50000 Cycles	250 V	20 A	0 °C	85 °C	12.7 mm	Non-Illuminated
Carling Technologies 2GK01-73	On-Off	Standard Round	17.45 mm	DPST	15/32-32	Quick Connect - 0.250" (6.3mm)	50000 Cycles	250 V	20 A	0 °C	85 °C	12.7 mm	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 12.74

General part information

Toggle Switch DPST Panel Mount
