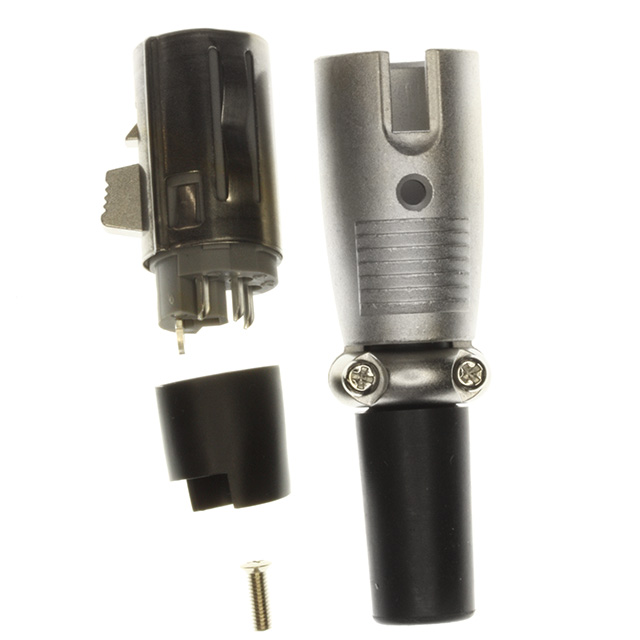

HA216P-4S(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 4P SOLDER CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 4P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	HA216P-4S(71)

Applications	Industrial
Backshell Material, Plating	Nickel, Zinc Alloy
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Cable Clamp
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Material	Stainless Steel
Shell Size - Insert	16
Shielding	Shielded
Voltage Rating	130 VAC, 180 VDC

Part	Orientation	Number of Positions	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Backshell Material, Plating	Material Flammability Rating	Applications	Shielding	Insert Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Fastening Type	Mounting Type	Features	Connector Type	Contact Material	Voltage Rating	Shell Material	Contact Finish - Mating
Hirose Electric USA, Inc. HA216P-4S(71)	Keyed	4	16	70 °C	-25 °C	Metal	Nickel Zinc Alloy	UL94 V-0	Industrial	Shielded	Nylon Polyamide (PA)	5 A	78.7 µin	2 µm	Silver	Latch Lock	Free Hanging (In-Line)	Backshell Cable Clamp Strain Relief	Female Sockets Plug	Phosphor Bronze	130 VAC 180 VDC	Stainless Steel	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources

No documents available
