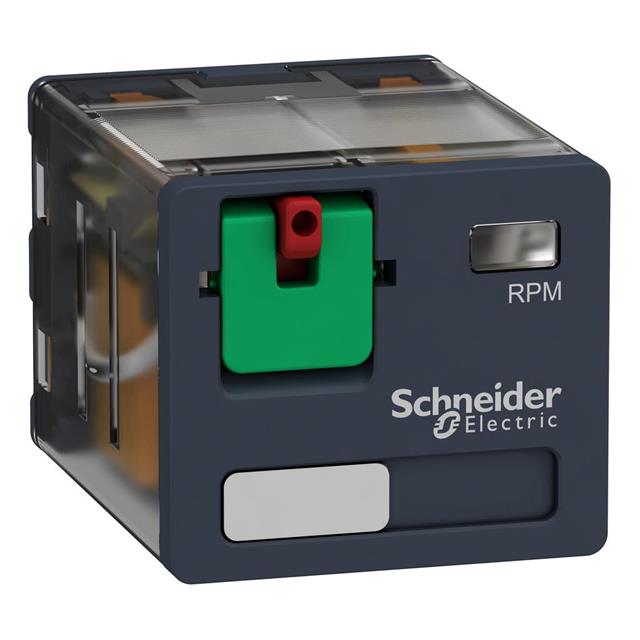

RPM31P7
ObsoleteSQUARE D BY SCHNEIDER ELECTRIC
HARMONY, POWER PLUG-IN RELAY, 15
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RPM31P7
ObsoleteSQUARE D BY SCHNEIDER ELECTRIC
HARMONY, POWER PLUG-IN RELAY, 15
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RPM31P7 |
|---|---|
| Approval Agency | CSA, UL, EAC |
| Coil Current | 24 mA |
| Coil Resistance | 9.6 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | 3PDT (3 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 15 A |
| Features | Test Button |
| Load - Max Switching | 3750 VA, 420 W |
| Mounting Type | Socketable |
| Must Operate Voltage | 184 VAC |
| Must Release Voltage | 34.5 VAC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 250 VAC, 28 VDC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.10 | |
Description
General part information
RPM31 Series
General Purpose Relay 3PDT (3 Form C) 230VAC Coil Socketable
