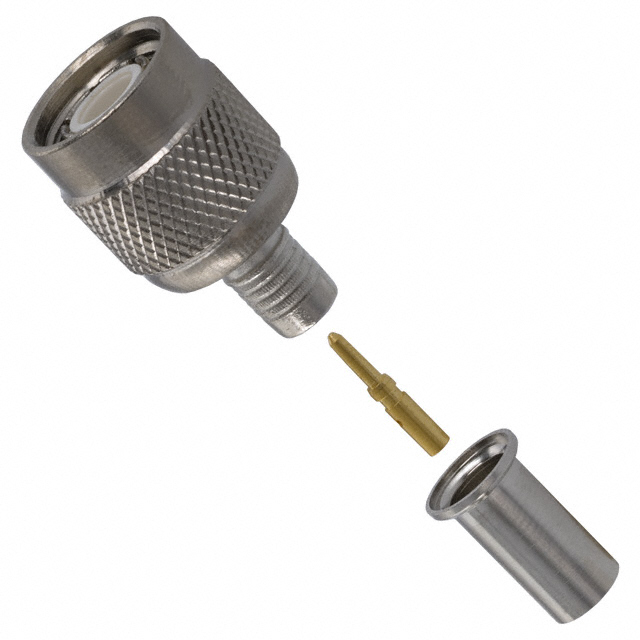

CPMCTNC17

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN TNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN TNC PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	CPMCTNC17

Body Finish	Nickel
Body Material	Zinc
Cable Group	RG-8X
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mating Cycles	Connector Style	Housing Color	Body Material	Cable Group	Cable Group	Center Contact Plating	Contact Termination	Body Finish	Impedance	Connector Type	Shield Termination	Center Contact Material	Dielectric Material	Frequency - Max [Max]	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mounting Type
Cinch Connectivity Solutions AIM-Cambridge CPMCTNC-13	500	TNC	Silver	Zinc	RG-55	142 223 400	Gold	Crimp Solder	Nickel	50 Ohms	Male Pin Plug	Crimp	Brass	Polymethylpentene (PMP)	11 GHz	1	85 °C	-55 °C	500 V	Free Hanging (In-Line)
Cinch Connectivity Solutions AIM-Cambridge CPMCTNC17	500	TNC	Silver	Zinc	RG-8X		Gold	Crimp Solder	Nickel	50 Ohms	Male Pin Plug	Crimp	Brass	Polytetrafluoroethylene (PTFE)	11 GHz	1	85 °C	-55 °C	500 V	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
