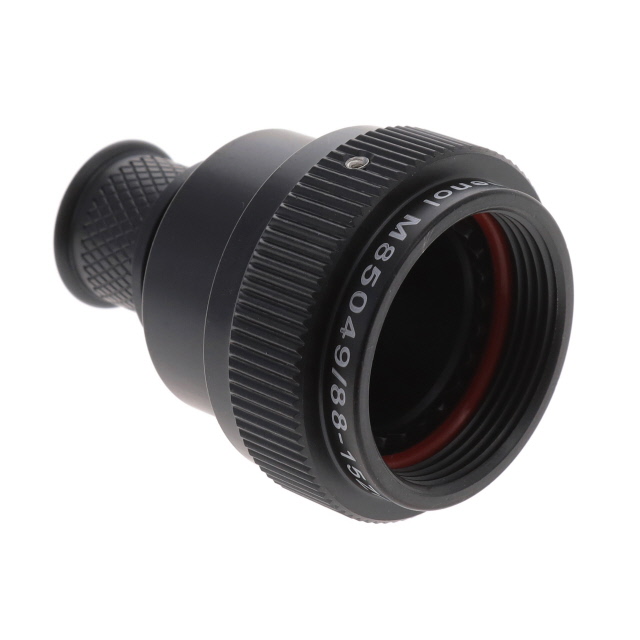

M85049/88-15Z02

Active

AMPHENOL PCD

CONN BACKSH BANDING SZ15 D BLK

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN BACKSH BANDING SZ15 D BLK

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/88-15Z02

Cable Exit	180 °
Cable Opening [diameter]	11.43 mm
Cable Opening [diameter]	0.45 in
Color	Black
Diameter - Outside [diameter]	1.28 in
Diameter - Outside [diameter]	32.51 mm
Features	Self Locking
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy
Plating	Zinc Cobalt
Shell Size - Insert	15
Shell Size - Insert	D
Shielding	Unshielded
Type	Banding, Backshell

Part	Material	Color	For Use With/Related Products	Type	Cable Exit	Cable Opening [diameter]	Cable Opening [diameter]	Shielding	Shell Size - Insert	Shell Size - Insert	Plating	Features	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]
AMPHENOL PCD M85049/88-15Z02	Aluminum Alloy	Black	MIL-DTL-38999 Series III IV	Backshell Banding	180 °	11.43 mm	0.45 in	Unshielded	15	D	Zinc Cobalt	Self Locking	1.28 in	32.51 mm
AMPHENOL PCD M85049/88-17W03	Aluminum Alloy	Olive Drab	MIL-DTL-38999 Series III IV	Backshell Banding	180 °	16.26 mm	0.64 in	Unshielded		17 E	Cadmium	Self Locking		1.406 in	35.71 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell, Banding 15, D
